Offshore Marine Protected Areas - fisheries management measures: supporting guidance on coordinates and restrictions:
Detailed guidance on site-specific fisheries management measures within Scottish Offshore Marine Protected Areas, including restricted gear types, gear codes, and precise area coordinates, to support compliance and promote sustainable use of marine resources in designated protected zones.

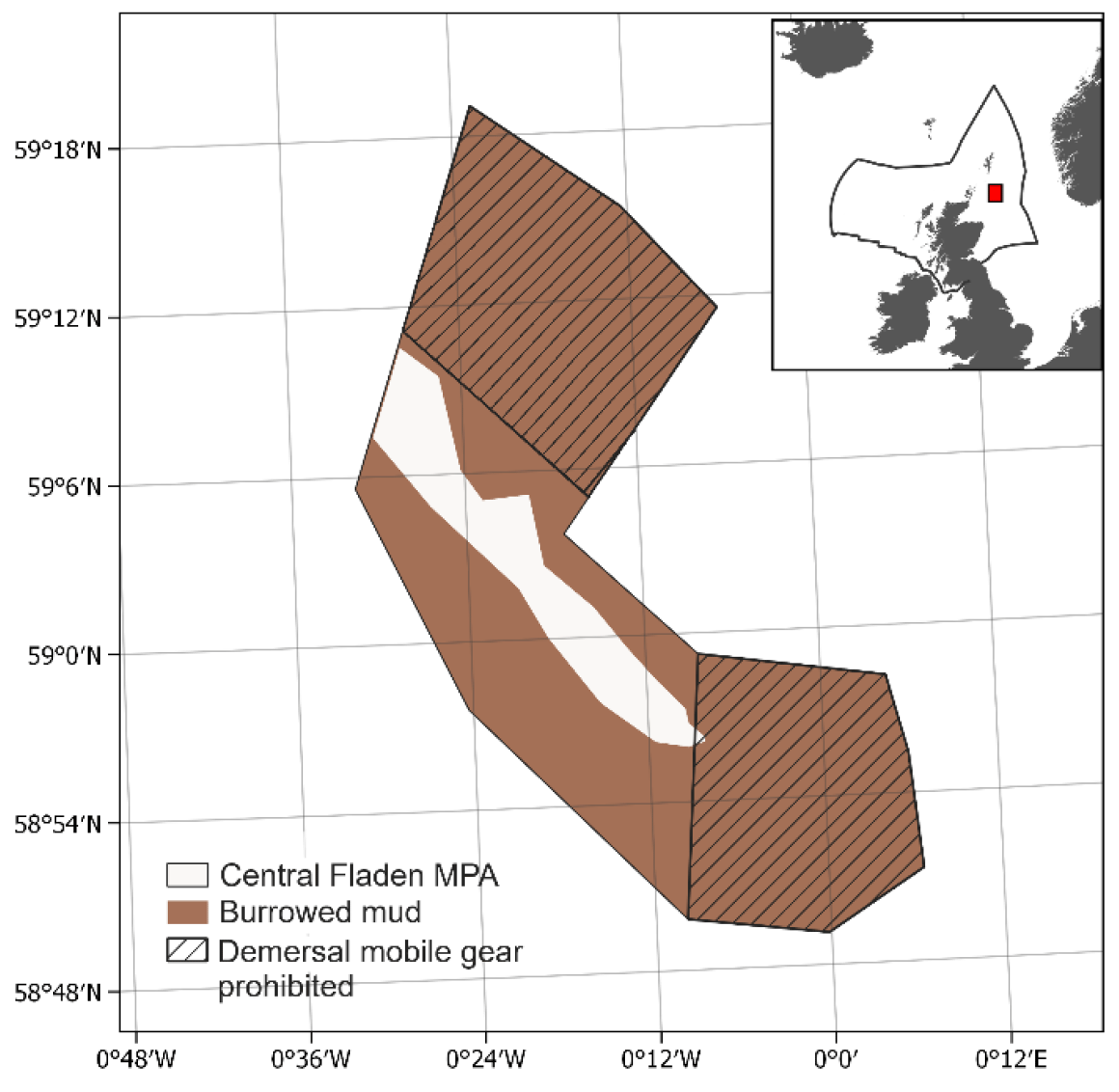

Central Fladen MPA
Location: ICES area 4a
Measures: Demersal mobile gear prohibited in two zonal areas
Gear types subject to restrictions
Demersal Mobile Gear:
- Bottom trawl: OTB, OTT, PTB, TBN, TBS, and TB
- Beam trawl: TBB
- Seines: SDN, SSC, SPR, SX, and SV
- Dredge (boat and mechanised): DRB and HMD
First Area (Demersal mobile gear prohibited)
| Boundary Line | Set of co-ordinates of points which the boundary line joins | Topographic description of boundary line |
|---|---|---|
| 1. | A to B | Geodesic |
| 2. | B to C | Geodesic |
| 3. | C to D | Geodesic |
| 4. | D to E | Geodesic |
| 5. | E to F | Geodesic |
| 6. | F to A | Geodesic |
Where—
“A” is 59° 8.568′ N, 000° 21.056′ W,
“B” is 59° 12.036′ N, 000° 27.334′ W,
“C” is 59° 19.075′ N, 000° 22.641′ W,
“D” is 59° 15.309′ N, 000° 12.478′ W,
“E” is 59° 11.561′ N, 000° 6.053′ W, and
“F” is 59° 5.601′ N, 000° 14.597′ W.
Second Area (Demersal mobile gear prohibited)
| Boundary Line | Set of co-ordinates of points which the boundary line joins | Topographic description of boundary line |
|---|---|---|
| 1. | G to H | Geodesic |
| 2. | H to I | Geodesic |
| 3. | I to J | Geodesic |
| 4. | J to K | Geodesic |
| 5. | K to L | Geodesic |
| 6. | L to M | Geodesic |
| 7. | M to G | Geodesic |
Where—
“G” is 58° 59.248' N, 000° 08.373' W,
“H” is 58° 58.226' N, 000° 04.475' E,
“I” is 58° 55.440' N, 000° 05.816' E,
“J” is 58° 51.311' N, 000° 06.539' E,
“K” is 58° 49.143' N, 000° 00.170' W,
“L” is 58° 49.627' N, 000° 07.084' W, and
“M” is 58° 49.819' N, 000° 09.843' W.
