Offshore Marine Protected Areas - fisheries management measures: supporting guidance on coordinates and restrictions:
Detailed guidance on site-specific fisheries management measures within Scottish Offshore Marine Protected Areas, including restricted gear types, gear codes, and precise area coordinates, to support compliance and promote sustainable use of marine resources in designated protected zones.
West of Scotland MPA
Location: ICES area 5b, 6a, 6b
Measures: Demersal mobile and demersal static gear prohibited from full site
Gear types subject to restrictions
Demersal Mobile Gear:
- Bottom trawl: OTB, OTT, PTB, TBN, TBS, and TB
- Beam trawl: TBB
- Seines: SDN, SSC, SPR, SX, and SV
- Dredge (boat and mechanised): DRB and HMD
Demersal Static Gear
- Pots, traps, or creels: FIX and FPO
- Floated demersal longlines: LL, LLS, and LX
- Set or static nets: GN, GNC, GNS, GTN, and GTR
All listed gear types are prohibited site-wide

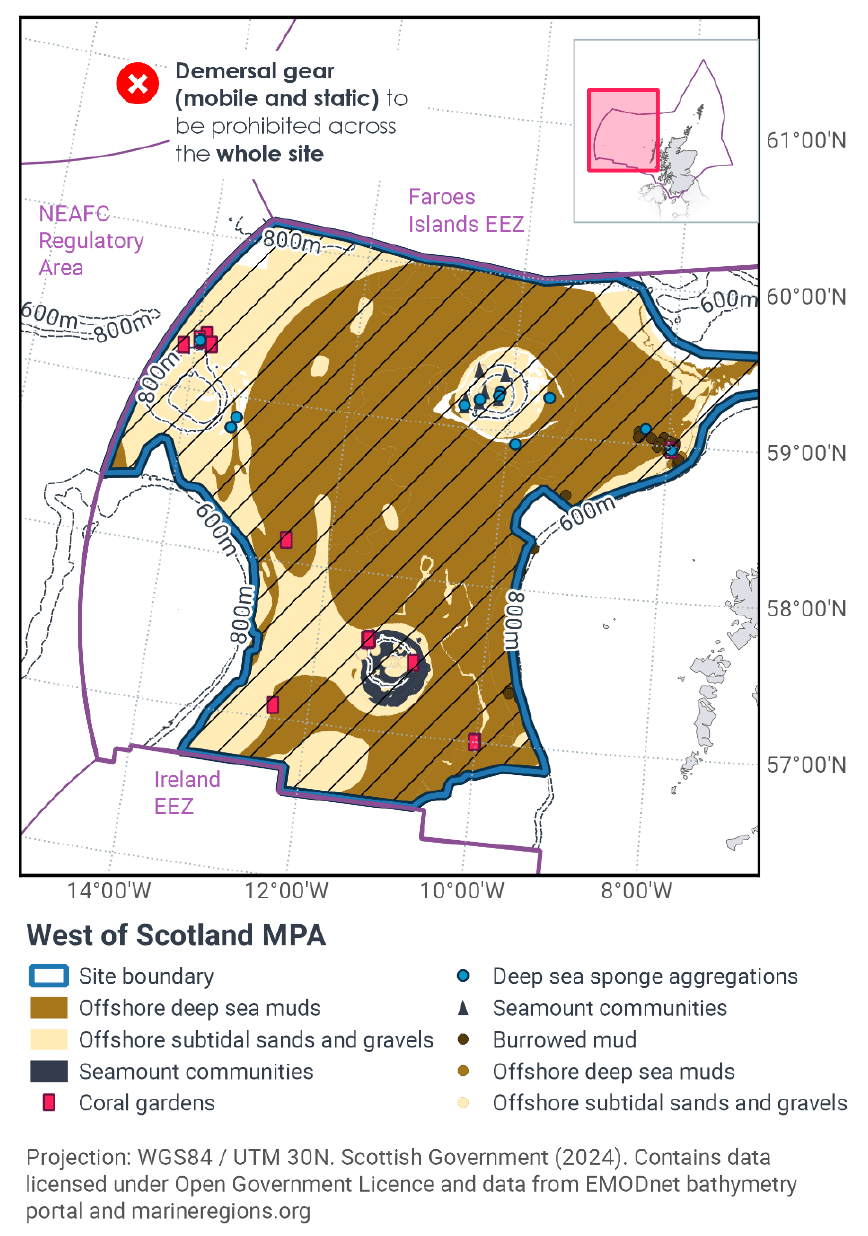

West of Scotland (Demersal mobile and demersal static gear prohibited)
| Boundary Line | Set of co-ordinates of points which the boundary line joins | Topographic description of boundary line |
|---|---|---|
| 1. | A to B | a line every point of which is 200 nautical miles from the nearest point on the baselines from which the breadth of the territorial sea of Great Britain and Northern Ireland is measured |
| 2. | B to C | Geodesic |
| 3. | C to D | Geodesic |
| 4. | D to E | Geodesic |
| 5. | E to F | Geodesic |
| 6. | F to G | Geodesic |
| 7. | G to H | Geodesic |
| 8. | H to I | Loxodrome |
| 9. | I to J | Loxodrome |
| 10. | J to K | Loxodrome |
| 11. | K to L | Loxodrome |
| 12. | L to M | Loxodrome |
| 13. | M to N | Loxodrome |
| 14. | N to O | Loxodrome |
| 15. | O to P | Loxodrome |
| 16. | P to Q | Loxodrome |
| 17. | Q to R | Loxodrome |
| 18. | R to S | Loxodrome |
| 19. | S to T | Loxodrome |
| 20. | T to U | Loxodrome |
| 21. | U to V | Loxodrome |
| 22. | V to W | Loxodrome |
| 23. | W to X | Loxodrome |
| 24. | X to Y | Loxodrome |
| 25. | Y to Z | Loxodrome |
| 26. | Z to AA | Loxodrome |
| 27. | AA to AB | Loxodrome |
| 28. | AB to AC | Geodesic |
| 29. | AC to AD | Geodesic |
| 30. | AD to AE | Geodesic |
| 31. | AE to AF | Geodesic |
| 32. | AF to AG | Geodesic |
| 33. | AG to AH | Loxodrome |
| 34. | AH to AI | Loxodrome |
| 35. | AI to AJ | Loxodrome |
| 36. | AJ to AK | Loxodrome |
| 37. | AK to AL | Loxodrome |
| 38. | AL to AM | Loxodrome |
| 39. | AM to AN | Loxodrome |
| 40. | AN to AO | Loxodrome |
| 41. | AO to AP | Loxodrome |
| 42. | AP to AQ | Loxodrome |
| 43. | AQ to AR | Loxodrome |
| 44. | AR to AS | Loxodrome |
| 45. | AS to AT | Loxodrome |
| 46. | AT to AU | Loxodrome |
| 47. | AU to AV | Loxodrome |
| 48. | AV to AW | Loxodrome |
| 49. | AW to AX | Loxodrome |
| 50. | AX to AY | Geodesic |
| 51. | AY to AZ | Geodesic |
| 52. | AZ to BA | Geodesic |
| 53. | BA to BB | Geodesic |
| 54. | BB to BC | Geodesic |
| 55. | BC to BD | Geodesic |
| 56. | BD to BE | Geodesic |
| 57. | BE to BF | Geodesic |
| 58. | BF to BG | Geodesic |
| 59. | BG to BH | Geodesic |
| 60. | BH to BI | Geodesic |
| 61. | BI to BJ | Geodesic |
| 62. | BJ to BK | Geodesic |
| 63. | BK to BL | Parallel of latitude |
| 64. | BL to BM | Meridian of longitude |
| 65. | BM to BN | Parallel of latitude |
| 66. | BN to BO | Loxodrome |
| 67. | BO to BP | Loxodrome |
| 68. | BP to BQ | Loxodrome |
| 69. | BQ to BR | Loxodrome |
| 70. | BR to BS | Loxodrome |
| 71. | BS to BT | Loxodrome |
| 72. | BT to BU | Loxodrome |
| 73. | BU to BV | Loxodrome |
| 74. | BV to BW | Loxodrome |
| 75. | BW to BX | Loxodrome |
| 76. | BX to BY | Loxodrome |
| 77. | BY to BZ | Loxodrome |
| 78. | BZ to CA | Loxodrome |
| 79. | CA to CB | Loxodrome |
| 80. | CB to CC | Loxodrome |
| 81. | CC to CD | Loxodrome |
| 82. | CD to CE | Loxodrome |
| 83. | CE to CF | Loxodrome |
| 84. | CF to CG | Loxodrome |
| 85. | CG to CH | Loxodrome |
| 86. | CH to CI | Loxodrome |
| 87. | CI to CJ | Loxodrome |
| 88. | CJ to CK | Loxodrome |
| 89. | CK to CL | Loxodrome |
| 90. | CL to CM | Loxodrome |
| 91. | CM to CN | Loxodrome |
| 92. | CN to CO | Loxodrome |
| 93. | CO to CP | Loxodrome |
| 94. | CP to CQ | Loxodrome |
| 95. | CQ to CR | Loxodrome |
| 96. | CR to A | Loxodrome |
Where—
“A” is 58° 22.287' N, 014° 50.995' W;
“B” is 60° 09.031' N, 013° 16.199' W;
“C” is 60° 07.306' N, 012° 17.622' W;
“D” is 60° 02.833' N, 011° 16.458' W;
“E” is 59° 57.425' N, 010° 29.895' W;
“F” is 59° 50.490' N, 009° 34.037' W;
“G” is 59° 49.792' N, 008° 38.602' W;
“H” is 59° 50.897' N, 008° 17.381' W;
“I” is 59° 47.116' N, 008° 12.352' W;
“J” is 59° 41.193' N, 008° 01.059' W;
“K” is 59° 37.000' N, 007° 39.000' W;
“L” is 59° 37.000' N, 006° 47.000' W;
“M” is 59° 37.060' N, 006° 42.224' W;
“N” is 59° 34.772' N, 006° 43.327' W;
“O” is 59° 31.497' N, 006° 42.441' W;
“P” is 59° 28.185' N, 006° 43.986' W;
“Q” is 59° 25.093' N, 006° 47.445' W;
“R” is 59° 22.330' N, 006° 52.624' W;
“S” is 59° 20.582' N, 007° 09.850' W;
“T” is 59° 15.390' N, 007° 23.808' W;
“U” is 59° 08.202' N, 007° 33.696' W;
“V” is 58° 59.771' N, 007° 36.598' W;
“W” is 58° 54.368' N, 007° 41.881' W;
“X” is 58° 49.203' N, 007° 54.558' W;
“Y” is 58° 47.250' N, 008° 01.900' W;
“Z” is 58° 45.950' N, 008° 08.680' W;
“AA” is 58° 40.175' N, 008° 35.100' W;
“AB” is 58° 31.796' N, 009° 07.613' W;
“AC” is 58° 39.096' N, 009° 29.196' W;
“AD” is 58° 35.033' N, 009° 38.450' W;
“AE” is 58° 28.310' N, 009° 46.418' W;
“AF” is 58° 23.341' N, 009° 46.975' W;
“AG” is 58° 19.571' N, 009° 33.061' W;
“AH” is 58° 17.200' N, 009° 35.150' W;
“AI” is 58° 15.900' N, 009° 36.800' W;
“AJ” is 58° 11.800' N, 009° 38.550' W;
“AK” is 58° 07.150' N, 009° 40.450' W;
“AL” is 58° 01.600' N, 009° 42.000' W;
“AM” is 57° 57.550' N, 009° 42.320' W;
“AN” is 57° 48.146' N, 009° 42.481' W;
“AO” is 57° 40.176' N, 009° 41.255' W;
“AP” is 57° 24.426' N, 009° 34.800' W;
“AQ” is 57° 17.001' N, 009° 29.263' W;
“AR” is 57° 09.577' N, 009° 24.089' W;
“AS” is 57° 04.000' N, 009° 18.700' W;
“AT” is 57° 01.000' N, 009° 15.900' W;
“AU” is 56° 59.500' N, 009° 14.000' W;
“AV” is 56° 56.500' N, 009° 11.100' W;
“AW” is 56° 52.500' N, 009° 08.500' W;
“AX” is 56° 50.711' N, 009° 08.003' W;
“AY” is 56° 50.706' N, 009° 39.394' W;
“AZ” is 56° 47.126' N, 009° 57.606' W;
“BA” is 56° 46.948' N, 010° 03.673' W;
“BB” is 56° 44.984' N, 010° 06.529' W;
“BC” is 56° 44.092' N, 010° 13.489' W;
“BD” is 56° 42.486' N, 010° 15.095' W;
“BE” is 56° 38.350' N, 010° 16.163' W;
“BF” is 56° 38.375' N, 010° 19.791' W;
“BG” is 56° 37.139' N, 010° 28.254' W;
“BH” is 56° 35.982' N, 010° 31.569' W;
“BI” is 56° 34.958' N, 010° 34.220' W;
“BJ” is 56° 33.519' N, 010° 36.697' W;
“BK” is 56° 32.500' N, 010° 38.280' W;
“BL” is 56° 32.500' N, 012° 12.000' W;
“BM” is 56° 42.000' N, 012° 12.000' W;
“BN” is 56° 42.000' N, 013° 25.223' W;
“BO” is 56° 42.167' N, 013° 25.167' W;
“BP” is 56° 43.883' N, 013° 23.983' W;
“BQ” is 56° 46.983' N, 013° 21.800' W;
“BR” is 56° 53.017' N, 013° 14.850' W;
“BS” is 56° 58.883' N, 013° 10.900' W;
“BT” is 57° 11.783' N, 012° 53.550' W;
“BU” is 57° 12.467' N, 012° 49.617' W;
“BV” is 57° 16.383' N, 012° 47.767' W;
“BW” is 57° 20.283' N, 012° 47.967' W;
“BX” is 57° 24.417' N, 012° 48.183' W;
“BY” is 57° 25.550' N, 012° 42.783' W;
“BZ” is 57° 30.650' N, 012° 43.133' W;
“CA” is 57° 30.950' N, 012° 46.600' W;
“CB” is 57° 35.900' N, 012° 50.850' W;
“CC” is 57° 40.650' N, 012° 50.433' W;
“CD” is 57° 50.200' N, 012° 50.667' W;
“CE” is 57° 58.083' N, 012° 53.900' W;
“CF” is 58° 04.700' N, 013° 02.033' W;
“CG” is 58° 11.750' N, 013° 17.533' W;
“CH” is 58° 17.117' N, 013° 28.850' W;
“CI” is 58° 21.950' N, 013° 38.283' W;
“CJ” is 58° 22.833' N, 013° 41.933' W;
“CK” is 58° 22.800' N, 013° 50.033' W;
“CL” is 58° 24.450' N, 013° 56.050' W;
“CM” is 58° 33.233' N, 014° 04.167' W;
“CN” is 58° 39.133' N, 014° 09.267' W;
“CO” is 58° 39.350' N, 014° 13.717' W;
“CP” is 58° 34.517' N, 014° 21.967' W;
“CQ” is 58° 25.833' N, 014° 25.700' W; and
“CR” is 58° 24.834' N, 014° 25.389' W.
