5. Heat Demand Analysis

Ramboll Energy have assessed the heat demand at Guardbridge (site and town) and the nearby towns of Leuchars and Balmullo using the Scotland Heat Map and future development data provided by the University of St Andrews. This analysis leads to a preliminary network design ( Section 6) and an economic model of the potential scheme ( Section 7).

The aim of this part of the study was to prepare preliminary district heating network layouts at different scales, based on the demand analysis. These various options provide an indication of the potential annual and peak heating demands that can then be compared against the geothermal heating potential found in Section 4.

5.1 Identifying Potential Demand

The Scotland Heat Map (individual building data) was used to identify areas of heat demand in Guardbridge and the surrounding area (Table. 5.1) and the Fife Development Plan was used to predict future heat demand). From an early stage, it was seen that the only locations within an accessible distance were Guardbridge village, Balmullo and Leuchars. For this study, the town of St Andrews itself was not considered as a potential demand for the system as the closest buildings of large demand, still approximately 6 km away, are University-owned buildings that are currently undergoing connection to a large biomass district heating network. The available heat demand for the towns discussed was extracted and is summarised in Table 5.1.

Table 5.1: Heat Demands in Guardbridge and the nearby towns.

StudyArea Heat Demand
(MWh)
Number of
Properties
Guardbridge 5452 198
Leuchars 21680 1270
Balmullo 12412 615

1. Guardbridge

The town of Guardbridge itself is relatively small in comparison with the other nearby areas (Table 5.1). It does, however, have the added bonus of being directly beside the proposed energy centre site and so would not need a long section of transmission pipe to be reached. There are also future commercial and residential developments planned around the town and on the former paper mill site where the University of St Andrews Guardbridge Energy Centre is situated.

2. Leuchars

Leuchars is a primarily residential area, with some local shops but no large commercial customers. There is a primary school to the north near an area of ex-council style homes that would offer an area of high heat demand density. One of the most promising aspects of the demand at Leuchars is the military base and its accommodation. This could potentially be treated as a single customer in regards to a heat supply agreement; streamlining connection negotiations and potentially providing a long term, secure source of demand in the network.

3. Balmullo

Balmullo is comprised almost entirely of residential properties in a relatively dense format which is typically good for a district heating network as it can provide high heat demand density which lowers the relative network costs. It is however, a lot further away from the proposed energy centre location, meaning a large amount of distribution pipe would be required for connection. This connection has the added hurdle of having to cross the Edinburgh to Aberdeen railway line, which can be a very expensive procedure as Network Rail have been known to charge in the region of £20,000 - £30,000 p.a. at an interest rate of RPI + 5% for permission to build across one of their lines. Despite their being a small stream and therefore bridge in place already, the works required to install DH pipe here would likely still incur these fees.

Table 5.2: Future development demand estimates.

Future Development Code

Development Type

Land Area (hectares)

Houses

Estimated Demand (MWh)

GUA01

Private Housing

0.2

12

120

GUA02

Private Housing

1.9

69

690

GUA04

Private Housing

3.1

75

750

GUA05

Commercial / Leisure

7.7

NA

4600

LEU01

Private Housing

7.8

125

1250

Table 5.3: Guardbridge paper mill development proposals and estimated heat demands (provided by the University of St Andrews).

Description

Post code

Floor area (m²)

Heat demand (MWh)

Specific demand (kWh/m²)

Phase 1 (2015-2020)

Offices, Labs, R&D, Workshops 1

Commercial Offices

3,870

488

126

Offices, Labs, R&D, Workshops 2

Commercial Offices

2,460

310

126

Library/ Archive Facility 30km linear of storage

University Building

3,000

324

108

Offices for Library staff

University Building

780

99

127

Offices above Library

University Building

3,200

403

126

Brewery

Retail

220

24

108

Data Centre

Industrial

1,040

225

216

Phase 2 (2015-2025)

Energy Centre Admin and Visitor centre

University Building

780

99

127

Innovation & Research Centre

Commercial Offices

9,290

1,454

157

Former Boiler House (Listed)

University Building

5,420

850

157

Data Centre Expansion

Commercial Offices

1,160

250

216

Light Industrial 1

Industrial

540

77

143

Light Industrial 2

Industrial

4,705

677

144

Offices, Labs, R&D, Workshops 3

Commercial Offices

2,330

293

126

Offices, Labs, R&D, Workshops 4

Commercial Offices

550

70

128

Offices, Labs, R&D, Workshops 5

Commercial Offices

2,640

333

126

Future Brewery Expansion

Retail

665

72

108

Store

University Building

690

99

143

TOTAL

6,147

5.2 Future Developments

To maximise the heat demand included in this study and ensure that the network was not just designed for the existing demands, future residential and commercial developments were included in the analysis. There are several areas of land set aside for residential developments around both Guardbridge and Leuchars; details of these were obtained from the Fife Council website and were accurate at the date of initial analysis (August 2015). There is additional development at Guardbridge on the local development plan and this could potentially be connected in the future. The demand estimates for the residential areas were done on the assumption that an average household's heat demand would be 10,000 kWh per year (Table 5.2). The commercial and leisure space at the site of the old Paper Mill (see Fig. 5.1) was based on data obtained from the University of St Andrews (Table 5.3).

The Guardbridge site heat demands, based on the development strategies of the University of St Andrews, were estimated based on floor area and benchmarks, and more detailed analysis regarding the annual heat demand is recommended. The phasing of this demand was estimated based on the development timescale outlined in Table 5.3.

Table 5.4: Projected development of district heating customers and network expansion

Year

2017

2018

2019

2020

2021

2022

2023

Investment in network in % of maximal

75%

75%

75%

100%

100%

100%

100%

Connection of consumer in % of maximum

30%

50%

75%

90%

100%

100%

100%

Estimated heat delivered per year (MWh/year)

1,844

3,074

4,611

5,533

6,147

6,147

6,147

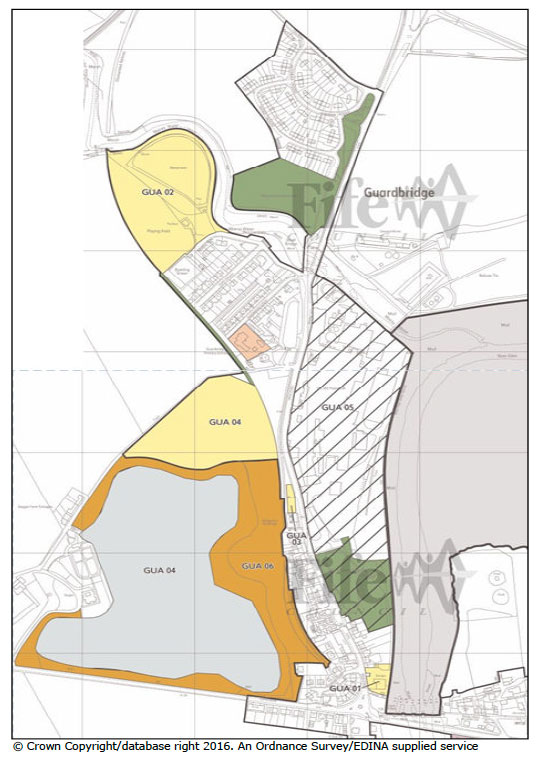

Fig. 5.1: Areas of future development in Guardbridge.

Fig. 5.1: Areas of future development in Guardbridge.
