Scottish Vacant and Derelict Land Survey 2015

The Scottish Vacant and Derelict Land Survey is a data collection undertaken to establish the extent and state of vacant and derelict land in Scotland. The survey has been operating since 1988, and is managed by the Scottish Government Communities Analysi


12 Annex: Considerations when interpreting the data

A.1 Data Quality. Local authorities may not update all historic site information every survey, consequently some site information may not be current. For example, a site may be sold and change ownership type. A change like this could happen without a local authority's knowledge. When up-to date information is reported by local authorities it is included in the historical datasets to allow improved time series analysis.

A.2 Removal and Addition of Sites. The means by which new sites are detected are largely centred on the expert knowledge of local authority planning officers. It is important to note that Table 17, which shows new sites added since the previous survey, shows only entirely new sites that are identified as falling out of use since the previous survey. Sites that have increased in size since the previous survey or those newly identified in 2015 but highlighted as being out of use prior to 2014 are not shown in Table 17. However, where the local authority does not know when a newly identified site first became vacant or derelict then it will appear in the table. Similarly, when part of a site is brought back into use, that part is detailed in the 'B' data set (sites brought back into use), and the part not brought back into use remains in the survey 'A' data set (vacant and derelict sites).

A.3 Changes in Site Details. Changes in site details can also cause other difficulties in interpreting the data. The most notable are when two separate sites become joined by the inclusion of a further piece of vacant or derelict land, and alternatively when a single site has a central area brought back into use, such that the remaining disused area does not form a single contiguous site. The first of these scenarios is the most awkward from a statistical viewpoint, as data regarding previous use etc. for both sites are unlikely to be compatible. Where this happens, details from the largest contributing site are used to describe the new, compound site.

A.4 Changes in Historic Data, 2009-2014. As each local authority returned their 2015 surveys, work was also undertaken to improve the quality of the data supplied in the previous 2009 to 2014 returns. This process was done to allow for improved time series analysis. The key aspects of this work included the removal (back to 2009) of any sites identified by the local authority as being 'removed for definitional reasons' (and hence not suitable to have been included in the survey in the first place) as well as correcting historically any other revisions reported in 2015, in the main where the site size has changed, or where the site should have been included earlier than it was. Historical site-type changes are not included unless there is a specific requirement and explicit agreement is obtained for these changes to be made. The outcome of this work produced a revised national SVDLS data set for the years from 2009-2014. At a Scotland level, apart from 2014 (see earlier explanation in section 1.6), differences between the revised data and the previous version were at most 0.4% (39 hectares) for a particular year. The results of these datasets are given throughout the tables and time series analysis of this bulletin. The SVDLS itself has been running continuously since 1993. Historical data on the amount of derelict and urban vacant land in Scotland, for the years 1996 to 2008, is shown in Annex Table A. 1996 to 2004 data has remained completely unaltered since the 2004 survey publication. 2005, 2006, 2007 & 2008 data were revised in 2011, 2012, 2013 & 2014 publications respectively. Thus care should be taken when comparing 1996-2008 data in Annex Table A to 2009-2015 data shown in this bulletin.

Annex Table A: Total Derelict and Urban Vacant Land by local authority area, 1996-2008 1,2,3

Local Authority Total Derelict and Urban Vacant Land Area (ha)
1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
Aberdeen City 190 184 184 139 129 152 152 105 139 139 78 63 53
Aberdeenshire 190 191 152 152 145 143 122 118 118 49 78 91 90
Angus 387 373 379 254 213 215 216 156 155 172 161 166 165
Argyll & Bute 64 55 46 46 45 45 46 46 46 28 81 60 40
Clackmannanshire 71 57 64 63 57 55 76 78 71 34 34 30 38
Dumfries & Galloway 365 371 372 364 361 364 360 358 358 225 474 465 456
Dundee City 282 279 288 254 254 259 247 224 237 212 234 219 206
East Ayrshire 564 564 568 477 441 426 355 330 319 332 323 319 319
East Dunbartonshire 109 113 109 100 86 86 135 123 121 120 115 85 77
East Lothian 261 250 236 106 139 134 127 122 86 85 71 62 85
East Renfrewshire 50 54 42 37 33 32 40 46 56 60 57 56 54
Edinburgh, City of 154 145 143 122 162 167 167 123 117 199 194 204 222
Falkirk 395 372 226 196 196 248 279 255 247 212 208 147 140
Fife 767 754 948 975 767 665 667 750 804 892 882 857 836
Glasgow City 1,617 1,580 1,581 1,558 1,476 1,392 1,383 1,345 1,315 1,313 1,286 1,270 1,332
Highland 813 813 813 813 813 813 1,181 1,154 1,147 1,110 1,071 1,369 1,369
Inverclyde 131 122 124 123 126 132 127 142 142 138 125 106 126
Midlothian 458 424 392 394 382 294 295 289 318 321 305 288 282
Moray 41 41 41 41 41 41 41 39 36 36 34 29 29
Na h-Eileanan Siar 16 13 13 11 11 11 11 11 12 11 11 11 11
North Ayrshire 366 387 378 409 391 418 428 555 542 547 1,190 1,279 1,300
North Lanarkshire 2,757 2,366 1,957 2,021 2,021 1,938 1,603 1,509 1,321 1,341 1,362 1,349 1,346
Orkney Islands 25 25 23 38 26 22 22 18 18 42 42 42 40
Perth & Kinross 94 98 132 149 139 106 111 109 114 96 88 78 40
Renfrewshire 347 259 421 413 400 428 989 1,007 1,025 976 959 950 940
Scottish Borders 76 90 87 79 79 69 69 65 65 59 55 108 89
Shetland Islands - - - - - - 2 2 2 2 9 9 9
South Ayrshire 111 133 152 152 164 156 152 144 144 135 135 123 114
South Lanarkshire 747 684 662 689 702 686 651 635 604 571 538 523 524
Stirling 173 173 161 219 210 200 203 210 203 188 182 166 164
West Dunbartonshire 214 230 243 230 225 216 224 222 220 229 241 223 219
West Lothian 1,100 1,100 1,100 809 809 496 573 556 560 654 657 632 617
Scotland 12,933 12,296 12,037 11,432 11,044 10,411 11,053 10,847 10,661 10,528 11,282 11,379 11,333

1. Figures may not sum due to rounding.
2. See Annex Table E for details of council participation in different years.
3. Care should be taken when comparing this data to that published for the years 2009-2015 in the main part of this bulletin. The data above has not been amended to take account of land removed for definitional reasons or other previous reporting errors.

A.5 Land area eligible. Although local authorities are asked to note all derelict land for the survey (see Annex section A.11 regarding Highland Council), the recording of vacant land is restricted to all land located within any settlement as defined by the local authority in the latest council approved local plan. Consequently, the actual land area surveyed for vacant land is often considerably smaller than the total land area of each local authority, especially in the case of the more rural areas.

A.6 Settlements of population 2,000 and over. Local authorities were asked to survey for vacant land within all settlements defined in their latest council approved local plans. However, due to resource constraints on some local authorities (particularly those covering large rural areas), some were unable to do a full survey of every settlement for vacant land. All did however survey every settlement within their boundaries that had a population of 2,000 or more. Therefore, to ensure consistency in data presentation, the statistics presented on vacant land throughout this bulletin refer only to land located within settlements that have a population of at least 2,000 (according to the local plan). Some local authorities did carry out either a full or partial survey for vacant land in settlements of under 2,000 in population. All vacant sites located within settlements of fewer than 2,000 in population are shown separately from the rest of the bulletin in Annex Table B below.

Annex Table B: Vacant Land within Settlements of under 2,000 in population, 2015 1,2

Local Authority Area (ha) No. of Sites
Aberdeenshire 206 7
Angus 24 3
East Ayrshire 20 11
East Dunbartonshire 1 1
Edinburgh, City of 16 5
Falkirk 7 6
Fife 8 7
Highland 18 7
Loch Lomond and the Trossachs 1 1
Moray 2 3
North Ayrshire 20 21
North Lanarkshire 10 3
Perth & Kinross 1 3
Scottish Borders 6 4
South Ayrshire 2 5
South Lanarkshire 9 11
West Lothian 16 2
All 363 100

1. Figures may not sum due to rounding.
2. Authorities included in this table are the only ones with any surveyed vacant land in small settlements.

All the local authorities shown in the above table have conducted either a full or partial survey for vacant land within settlements of under 2,000 in population. Any local authorities not shown in the above table either do not have any vacant land in settlements under 2,000 in population, or do not contain any settlements of under 2,000 in population according to local plans ( i.e. Aberdeen City).

It is estimated that approximately 19,618 hectares (excludes Loch Lomond) of land within settlements of under 2,000 in population were surveyed for vacant land in Scotland during 2015. From this area, local authorities reported a total of 363 hectares of vacant land across 100 sites. Aberdeenshire had the highest amount of reported land within settlements of under 2,000 in population, with 206 hectares across 7 sites - this includes a site at the former Edzell air base (200 hectares).

Of the 88 sites (341 hectares) of vacant land in settlements of under 2,000 in population reported in 2014, 3 sites (1.1 hectares) were brought back into productive use.

Annex Table C: Derelict Land as a percentage of total area by local authority area, 2015 1,2

Local Authority Total Derelict Land (ha) Total Area (ha) 2 % of Local Authority Derelict
Aberdeen City 20 18,571 0.1
Aberdeenshire 33 631,261 0.0
Angus 112 218,179 0.1
Argyll & Bute 3 37 690,867 0.0
Clackmannanshire 12 15,898 0.1
Dumfries & Galloway 427 642,679 0.1
Dundee City 16 5,983 0.3
East Ayrshire 2,481 126,212 2.0
East Dunbartonshire 61 17,449 0.3
East Lothian 71 67,918 0.1
East Renfrewshire 35 17,424 0.2
Edinburgh, City of 95 26,333 0.4
Falkirk 105 29,736 0.4
Fife 548 132,503 0.4
Glasgow City 641 17,468 3.7
Highland 1,276 2,565,651 0.0
Inverclyde 28 16,045 0.2
Loch Lomond & the Trossachs 3,4 25 186,340 0.0
Midlothian 185 35,369 0.5
Moray 8 223,756 0.0
Na h-Eileanan Siar 1 305,982 0.0
North Ayrshire 1,125 88,534 1.3
North Lanarkshire 1,109 46,992 2.4
Orkney Islands 39 98,880 0.0
Perth & Kinross 3 25 528,558 0.0
Renfrewshire 748 26,149 2.9
Scottish Borders 49 473,174 0.0
Shetland Islands 5 146,668 0.0
South Ayrshire 74 122,198 0.1
South Lanarkshire 339 177,192 0.2
Stirling 3 131 218,697 0.1
West Dunbartonshire 3 167 15,876 1.1
West Lothian 341 42,774 0.8
Scotland 4 10,365 7,790,972 0.1

1. Figures may not sum due to rounding.
2. Land areas were derived from Standard Area Measurements produced by the Office for National Statistics in January 2011. Figures may not add exactly because of rounding. Source: http://www.nrscotland.gov.uk/statistics-and-data/statistics/statistics-by-theme/population/population-estimates/mid-year-population-estimates/mid-2014/list-of-tables
3. From 2011 LLTNP took responsibility for surveying vacant and derelict land within the park boundaries. These sites are no longer recorded in Argyll & Bute, Perth & Kinross, Stirling and West Dunbartonshire local authority boundaries, and are separately identifiable as LLTNP from 2011. Prior to 2011, these sites were classified within the relevant local authority boundary.
4. Although the land area for LLTNP is separately identified it is also included within the land area for the relevant local authorities that overlap the park. Therefore the total land area for Scotland does not include this separately identified land area for LLTNP.

A.7 Estimate of the proportion of local authority population living within a defined distance of a Derelict Site. Tables 8 and 9 in the publication show estimates by local authority of the percentage of their population living within various distances of derelict land. For Table 8 (using 2015 SVDLS data) a buffer zone based on the area of each derelict site was drawn around the grid co-ordinate points supplied for that site. This gives an estimated boundary for each site. Data should be treated with care as it is not the 'actual' site boundaries that are being used. Table 9 followed the same procedure with regard to 'estimating' site boundaries. The second part of Table 9 estimates the proportion of local authority population living in close proximity to land that has been derelict prior to 1991 or 2001. In this instance, only derelict sites which were either identified by local authorities as being derelict prior to 1991 or 2001 or, (where length of time derelict is unknown) where the first site inspection occurred prior to 1991 or 2001 are included.

To measure the proportion of each local authority population that lives within a certain distance of derelict land, a national data set was constructed that estimated the population of each property identified as likely to be residential in the National Records of Scotland ( NRS) Address Register for 2015. Previously Ordnance Survey's Address-Point data set was used. Average household size figures were calculated by dividing NRS census (2011) population by census household counts at the Census Output Area ( COA) level. All records in the 2015 Address Register that were identified as likely to be residential were assigned an estimated household size figure based on the average household size of the COA they fall within (their unit-postcodes being used to link with a COA from NRS's geographic index dataset by way of Royal Mail's 2011 Postcode Index File).

To ensure consistency with previously published population estimates, the latest available small-area estimates of population by NRS (in this case datazones for 2014) were used as a control factor on the calculated household size figures. For each property in the Address Register based dataset, the distance to the nearest estimated derelict site boundary was calculated, to highlight those properties within the defined distance of derelict land. Those properties' estimated populations were then aggregated up by datazone to give a proportion of each datazone's population (and hence each local authority's population) estimated to live within the defined distance of derelict land.

Overall it is estimated that 29.7% of the population of Scotland live within 500 metres of a derelict site in 2015. All the data published in Tables 8 and 9 on proximity will also be available at the datazone level on the Scottish Government Statistics website at http://statistics.gov.scot/. The website will be updated with these results at the next data update, following the publication of this bulletin.

A.8 Scottish Index of Multiple Deprivation ( SIMD 2012) and Derelict/Urban Vacant land. Table 10 shows the amount of derelict and urban vacant land located within Scotland's 15% most deprived datazones. Those datazones are identified by way of the 2012 Scottish Index of Multiple Deprivation Project (the results of which were published in December 2012). The SIMD 2012 project identifies small area concentrations of multiple deprivation across all of Scotland. It contains 38 indicators in seven domains: Current Income, Employment, Health, Education, Skills and Training, Geographic Access to Services, Housing and Crime. Sites in the SVDLS are identified as being located within Scotland's most deprived areas if their grid co-ordinate point ( i.e. the centre of the site) falls within a 15% most deprived datazone. Care should be taken with this data as there could be instances of some sites (especially the larger ones) crossing datazone boundaries, hence part of the site may be in a 15% most deprived datazone, whilst the other part could be outwith. Further information on the SIMD 2012 project can be found on the Scottish Government's web page at: http://www.gov.scot/Topics/Statistics/SIMD/Overview

A.9 Definitions/Interpretations. The SVDLS guidelines clearly state the definitions for the recording of derelict and urban vacant land. Where difficulties are encountered, the guidelines have been modified to assist in the provision of uniform returns, but ultimately the survey relies on the consistent application of definitions between local authorities and through subsequent years. The data revision work for 2009-2014 (described in Annex Section A.4) was carried out to improve uniformity between local authority returns for those years. Some of the changes reported in Annex Table D (sites removed for 'definitional' reasons) come about following a reappraisal of the survey guidelines (prior to the 2006 survey). The introduction of GIS systems has also allowed planning officers to improve data quality, hence also leading to some of the changes in Annex Table D. Since the last survey, there were a total of 52 sites (320 hectares) split/amalgamated, naturalised or removed for definitional reasons. The majority of this area (217 hectares) was removed from the former Westfield opencast site near Kinglassie in Fife. SVDLS guidance documents can be found at: http://www.gov.scot/Topics/Statistics/Browse/Planning/DataSupplierArea

Annex Table D: Sites split/amalgamated, naturalised or removed for definitional reasons, by local authority area, 2015 1

Local Authority Derelict Land Urban Vacant Land Total Derelict and Urban Vacant Land
Area (ha) No. of Sites Area (ha) No. of Sites Area (ha) No. of Sites
Aberdeen City 1 1 0 0 1 1
Angus 16 5 0 0 16 5
Argyll & Bute 0 0 1 3 1 3
Clackmannanshire 0 0 1 1 1 1
Dumfries & Galloway 27 2 0 0 27 2
Dundee City 0 0 0 1 0 1
East Ayrshire 14 3 4 2 18 5
Edinburgh, City of 1 2 0 0 1 2
Fife 217 1 0 0 217 1
Highland 4 13 7 4 11 17
Inverclyde 1 1 0 0 1 1
Moray 0 0 4 4 4 4
North Lanarkshire 2 1 0 0 2 1
Renfrewshire 0 0 0 1 0 1
South Ayrshire 1 1 0 0 1 1
South Lanarkshire 10 3 1 2 11 5
West Dunbartonshire 0 0 7 1 7 1
All 294 33 26 19 320 52

1. Figures may not sum due to rounding.

A.11 Land surveyed by Highland Council. Due to the large area of land covered by Highland council, a partial survey was carried out in each year between 2002 and 2005 (inclusive). Only derelict and urban vacant sites within settlements containing a population of 2,000 or over and derelict sites within the Inner Moray Firth area were surveyed. In 2006, the (then) Scottish Executive let a contract to consultants to survey derelict sites in outlying parts of Highland council area. This was the first time since 1993 that derelict sites were surveyed in the outlying areas of Highland council. Overall it meant that a complete survey was carried out in Highland during 2006 (in terms of what was presented in the main part of the 2006 bulletin on derelict and urban vacant land). Highland council surveyed all settlements of over 2,000 in population for derelict and urban vacant land and the Inner Moray Firth area for derelict land, the consultants surveyed the remaining outer rural areas for derelict land. In 2007 the previous practice was resumed with Highland council surveying for land within settlements containing a population of 2,000 or over and derelict sites within the Inner Moray Firth area. The 2006 results of the consultants' work in most of the outer rural parts of Highland council were brought forward as the best possible estimate up to 2012. In 2013 Highland council submitted a survey based on visits made in preparation for the Inner Moray Firth Local Development Plan along with visits and knowledge from both Planning and Development and Housing and Property Services staff.

A.12 Database of Sites. A database of existing sites detailing their name, site code, type (vacant or derelict), size (in hectares) and location (by grid reference, local authority and whether or not the site is within a settlement or the countryside) is available on the Scottish Government's Planning Statistics web page at http://www.gov.scot/Topics/Statistics/Browse/Planning/SVDLSSiteRegister. Copies can also be sent out by contacting Communities Analytical Services Division on 0131 244 0439.

A.13 Land surveyed by Loch Lomond and the Trossachs National Park Authority. In 2010 it was decided that Loch Lomond would take responsibility for surveying vacant and derelict land within the park's boundaries - this task had previously fallen to the local authorities that overlap the park. The authority was unable to complete a full survey of the park area for 2010, so the figures were included as part of the relevant local authorities as before. However, summary figures were published in Annex E of the 2010 SVDLS bulletin. For 2011 to 2015 LLTNP's figures have been presented in their own right in the main body of the bulletin.

Local authority participation

A.14 Participation of Local Authorities. It is important to remember throughout the interpretation of the figures reported in this bulletin that not all local authorities participate in the survey every year. There are two main impacts arising from this:

1. Comparisons between years must be made with care and only for individual local authorities where suitable data exist.

2. Where a local authority has not provided data every year, the recorded change will be since the last survey, and will thus reflect several years' worth of change.

Non-participating councils are identified for each year since 1996 in Annex Table E.

Annex Table E: Local Authorities NOT participating in the survey, 1996-2015

Local Authority 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Aberdeen City     x     x
Aberdeenshire             x       x
Angus
Argyll & Bute 4       x x x
Clackmannanshire
Dumfries & Galloway x               x
Dundee City   x     x
East Ayrshire x x 1           x
East Dunbartonshire
East Lothian
East Renfrewshire
Edinburgh, City of           x
Eilean Siar
Falkirk         x
Fife
Glasgow City
Highland x x x x x x 2 2 2 2 2 2 2 2 2 x
Inverclyde
Loch Lomond & the Trossachs 4 x x x x x x x x x x x x x x 3
Midlothian x
Moray   x x x x x       x
North Ayrshire           x
North Lanarkshire
Orkney Islands
Perth & Kinross 4
Renfrewshire
Scottish Borders         x x x x
Shetland Islands           x
South Ayrshire       x   x   x
South Lanarkshire
Stirling 4   x
West Dunbartonshire 4
West Lothian x x x   x

1. Only the SVDLS-A data file was provided.
2. See Annex Section A.11.
3. In the 2010 SVDLS bulletin (Annex E) summary figures were published for LLTNP.
4. From 2011 LLTNP took responsibility for surveying vacant and derelict land within the park boundaries. These sites are no longer recorded in Argyll & Bute, Perth & Kinross, Stirling and West Dunbartonshire local authority boundaries, and are separately identifiable as LLTNP from 2011 onwards. Prior to 2011, these sites were classified within the relevant local authority boundary.

Annex F: East Ayrshire's detailed analysis of former surface coal sites.

The following maps and text are based on information provided by East Ayrshire Council and provide examples of how two former surface coal mining sites have been categorised to determine the total amount of derelict land.

Chalmerston:

The original area of this site of 842 hectares was based on the area of the planning application site boundary. Whilst this is an accurate reflection of the planning application boundary, it does not provide an accurate reflection of the intended and actual areas of working and thus the eventual areas of derelict land.

Chalmerston was in the portfolio of The Scottish Coal Company Limited and was abandoned following the liquidation of the company in 2013. The site was coaled and unrestored and no coal remained. Negotiations for restoration insurance are not yet concluded for this site. As at March 31st 2015 the site had been transferred to liquidators KPMG and was operating through a separate company.

The land at Chalmerston has been broken down to incorporate only the areas which at 31st March 2015 were still viewed as requiring restoration. Unworked and naturalised parcels of land have been excluded from the derelict land total. Also excluded are areas which are below the restoration standard expected within the original planning permissions but are not considered to be of such poor quality as they would present a significant health and safety danger or environmental risk. The remaining land included in the submission incorporates areas of land identified as being unsafe or of very poor environmental quality and requiring further remediation works.

A review of the Chalmerston Progress Plan 2013 was undertaken to identify the prevailing physical characteristics of the site as of March 2015. Figures 1 and 2, below, illustrate the areas of land that have been excluded and included for the purposes of reporting derelict land. This has resulted in a combined area of 112.12 hectares of derelict land being identified at Chalmerston (excluding Chalmerston North), as at 31st March 2015, from a total site area of 842 hectares

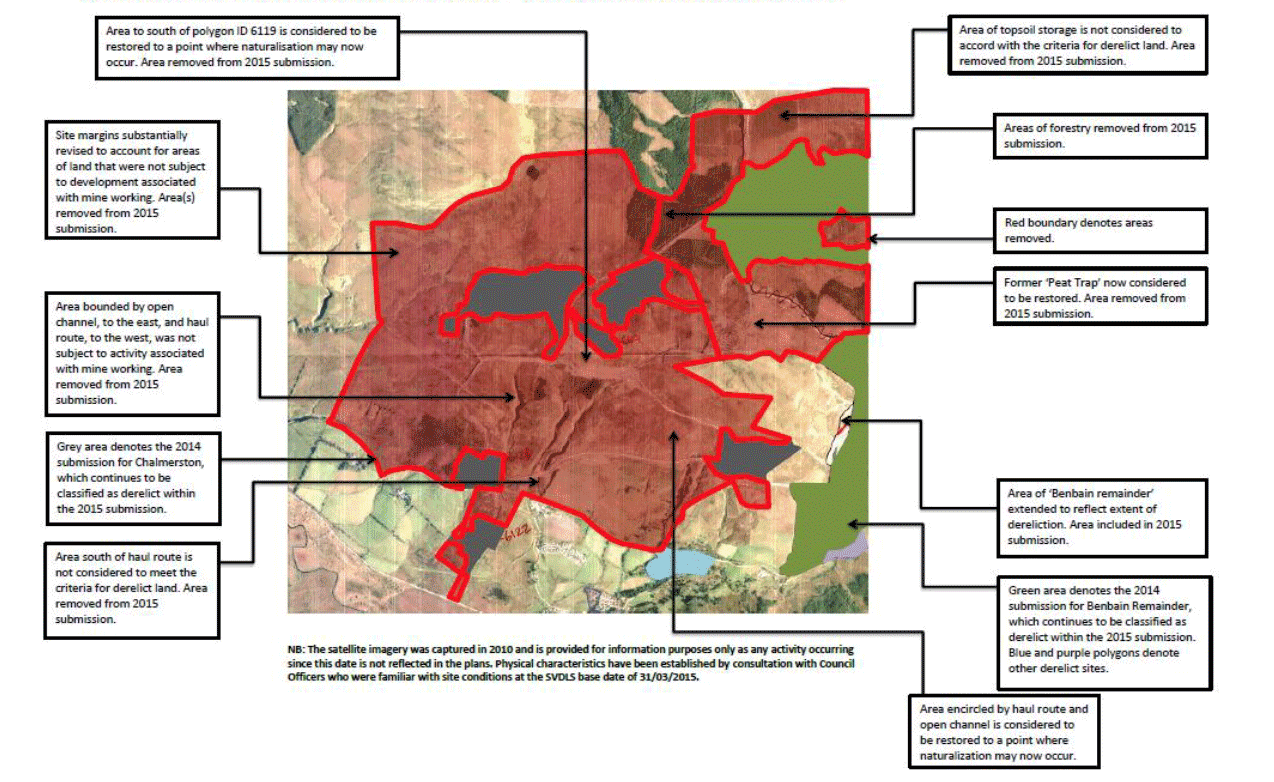

Figure 1: Chalmerston Former open cast coal site - 2015 SVDLS Submission: Areas Removed

Figure 1: Chalmerston Former open cast coal site - 2015 SVDLS Submission: Areas Removed

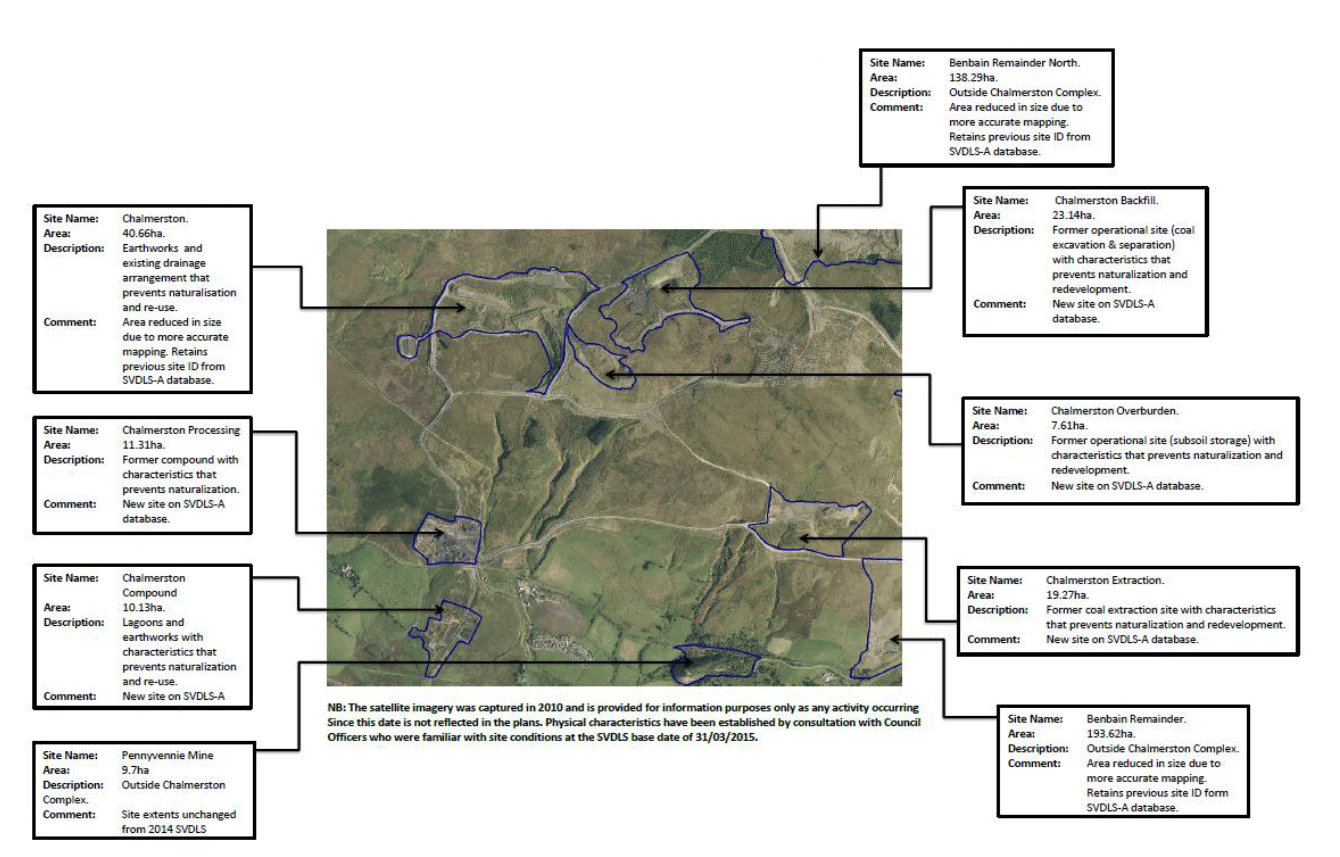

Figure 2: Chalmerston Former Open Cast Coal Site - 2015 SVDLS Submission: Areas Included

Figure 2: Chalmerston Former Open Cast Coal Site - 2015 SVDLS Submission: Areas Included

Dalfad:

The original area of the Dalfad site of 321 hectares was based on the area of the planning application and whilst this is an accurate reflection of the planning application site boundary, it does not provide an accurate reflection of the intended and actual areas of working and thus, the eventual areas of derelict land.

Dalfad was in the portfolio of The Scottish Coal Company Limited and was abandoned following the liquidation of the company in 2013. The site was coaled and unrestored and there was a considerable shortfall in bond values. By March 31st 2015, the site had been transferred to the ownership of Mines Restoration Limited.

Dalfad has been broken down to incorporate only the areas which at 31st March 2015 were still viewed as requiring restoration. Unworked and naturalised parcels of land have been removed from the derelict land total.

A review of the Dalfad/Powharnal Progress Plan 2013 was undertaken to identify the prevailing physical characteristics of the site as of March 2015. Figures 3 and 4, below, illustrate the areas of land that were excluded or included for the purposes of reporting derelict land in the 2015 survey. This has resulted in a total area of derelict land at Dalfad, as at 31st March 2015, of 164.39 hectares, from a total site area of 321 hectares.

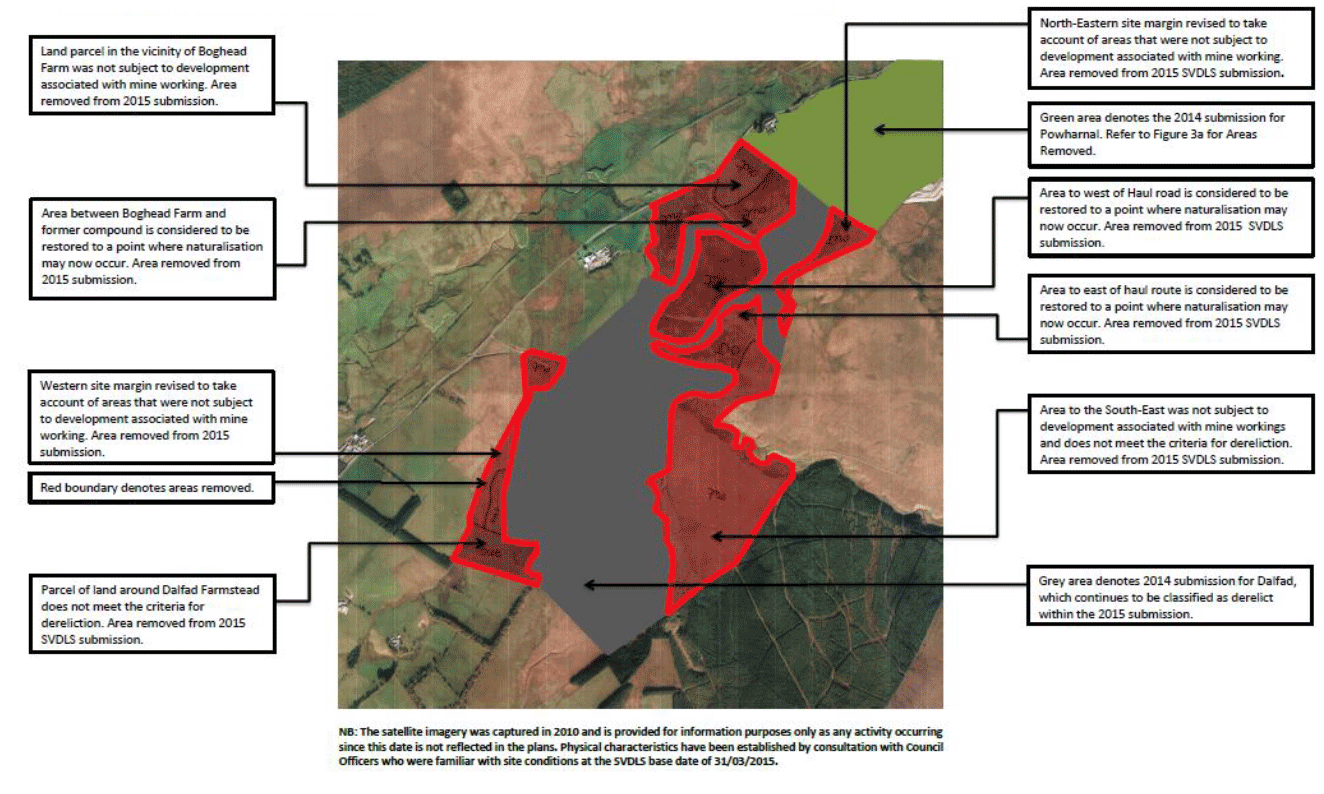

Figure 3: Dalfad Former Open Cast Coal Site - 2015 SVDLS Submission: Areas Removed

Figure 3: Dalfad Former Open Cast Coal Site - 2015 SVDLS Submission: Areas Removed

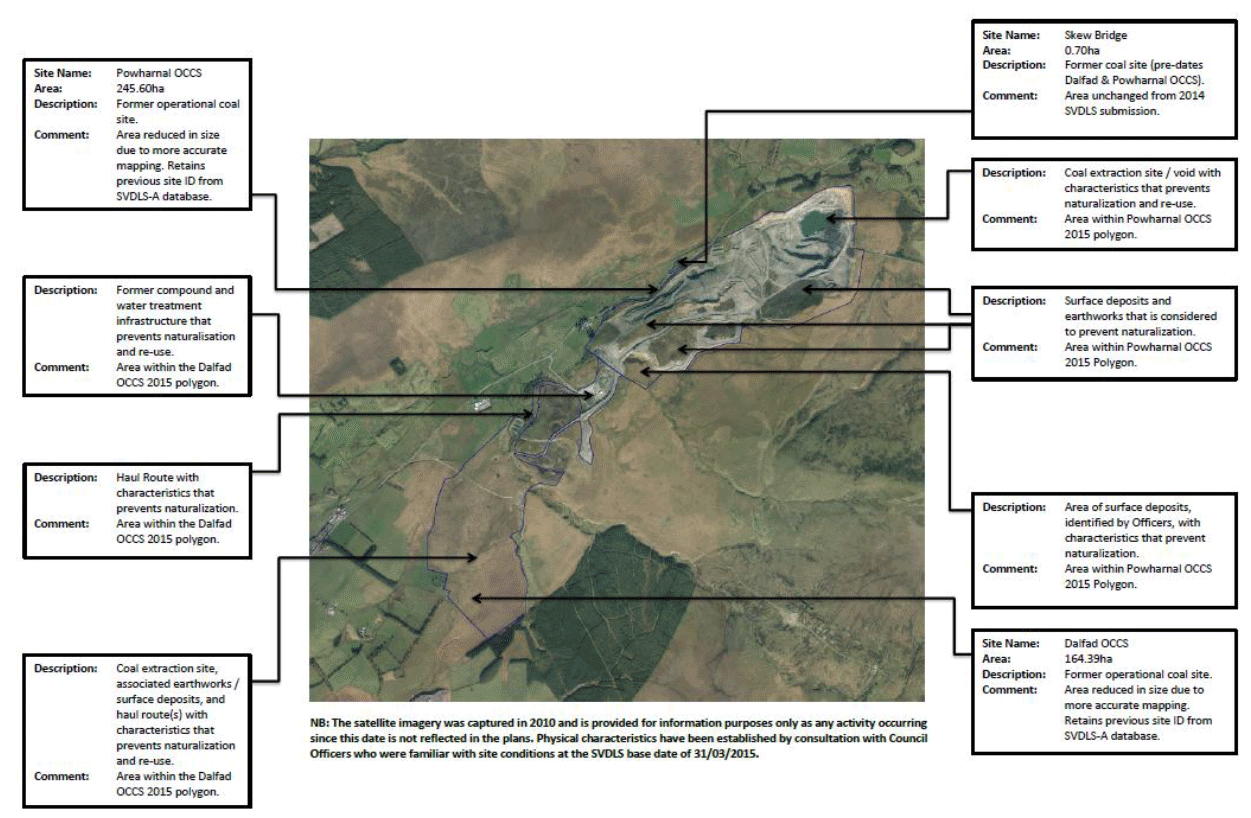

Figure 4: Dalfad & Powharnal Former Open Cast Coal Site - 2015 SVDLS Submission: Areas Included

Figure 4: Dalfad & Powharnal Former Open Cast Coal Site - 2015 SVDLS Submission: Areas Included
