Developing regulation of energy efficiency of private sector housing (REEPS): modelling improvements to the target stock - Main Research Report
5 Improving The Target Stock

260 page PDF

7.2 MB

5 Improving The Target Stock

5.1 Following discussion among the REEPS Research Advisory Group and REEPS members, it was agreed that 4 policy scenarios should be modelled:

  • Scenario 1: All dwellings to reach EPC band F (improve dwellings in EPC band G to reach minimum threshold of Band F).
  • Scenario 2: All dwellings to reach EPC band E (improve dwellings in EPC bands G and F to reach minimum threshold of Band E).
  • Scenario 3: All dwellings to reach EPC band D (improve dwellings in EPC bands G, F and E to reach minimum threshold of Band D).
  • Scenario 4: All dwellings to move up one EPC band.

5.2 This chapter briefly summarises the potential impact of the 38 improvement measures individually before detailing the scope and impact of the 4 different policy scenarios.

Summary of individual measures

5.3 Table 5.1 shows the status of all 38 individual measures across the REEPS target stock. As noted in Chapter 4, individual measures were modelled for all dwellings where it was possible to implement and where they would potentially increase the SAP rating. Measures that were modelled in at least 50% of dwelling were:

  • Insulated External Doors (99%)
  • Low energy lighting to 100% (89%)
  • 2m diameter wind turbine on roof (86%)
  • Floor insulation (86%)
  • 5m wind turbine on stand-alone mast (81%)
  • Draught proofing windows and doors (79%)
  • Triple glazing to a U-value of at least 1.4 W/m2K (79%)
  • Loft insulation including top-up (75%)
  • PV 2Kwp (64%)
  • Solar thermal 4m2 (62%)
  • Solid wall insulation (57%)
  • and Hot water tank jacket of 80mm (54%).

5.4 The measures most commonly already present were:

  • Double glazing to 1.8 W/m2K (71%)
  • Programmer for heating system (67%)
  • Thermostatic radiator valves (TRVs - 54%)
  • Cylinder stat for hot water cylinder (45%)
  • Room thermostats (31%).

Table 5.1: Summary of status[57] of individual measures across all of the target stock

Already present Modelled Not appropriate Not recommended Total Modelled (n)
M10: Insulated External Doors 0% 99% 0% 1% 100% 397,356
M33: Low Energy Lighting 100% 11% 89% 0% 0% 100% 356,043
M31: 2M Diameter Wind Turbine On Roof 0% 86% 0% 14% 100% 346,307
M6: Floor Insulation 1% 86% 13% 0% 100% 344,772
M32: 5M Wind Turbine On Stand-Alone Mast 0% 81% 0% 19% 100% 326,251
M12: Draughtproof Windows And Doors 21% 79% 0% 0% 100% 316,074
M9: Triple Glazing To 1.4 1% 79% 0% 20% 100% 314,738
M1: Loft Insulation, Including Top Up 14% 75% 10% 0% 100% 300,669
M30: Pv 2Kwp 0% 64% 0% 36% 100% 255,674
M29: Solar Thermal 4M2 0% 62% 0% 38% 100% 246,667
M5: Solid Wall Insulation 1% 57% 41% 1% 100% 229,762
M11: Hot Water Tank Jacket 80Mm 17% 54% 28% 1% 100% 216,082
M13: Baffle / Damper To Open Fire 2% 46% 52% 0% 100% 182,296
M4: Cavity Wall Insulation 0% 45% 53% 2% 100% 181,708
M24: Room Thermostat 31% 37% 31% 2% 100% 147,386
M14: Replace Gas Boiler With Condensing Boiler 88% 6% 35% 58% 1% 100% 141,859
M20: Quantum Storage Heaters 0% 30% 0% 70% 100% 119,434
M3: Room In The Roof Insulation 1% 29% 70% 0% 100% 118,072
M19: Fan Elec Storage Heaters With Auto Charge Control 1% 29% 0% 71% 100% 115,201
M35: Air To Air Heat Pump 0% 28% 1% 71% 100% 110,963
M7: Double Glazing To 1.8 71% 26% 0% 3% 100% 103,520
M8: Secondary Glazing To 2.4 1% 25% 1% 73% 100% 99,270
M36: Replace Secondary Heating with more efficient one 0% 24% 9% 67% 100% 96,558
M15: Replace Oil/LPG Boiler to 90% 4% 18% 71% 8% 100% 71,515
M34: Cylinder Stat For Hot Water Cylinder 45% 14% 41% 0% 100% 57,247
M26: Trvs 54% 14% 32% 0% 100% 57,100
M2: Flat Roof Insulation 0% 12% 88% 0% 100% 46,617
M38: Switch Electricity Tariff 1% 10% 68% 22% 100% 38,714
M28: Auto Charge Control 11% 7% 72% 9% 100% 29,631
M27: Full Controls Package 21% 4% 31% 44% 100% 15,705
M18: Full Biomass Central Heating System Inc Controls 0% 4% 0% 96% 100% 14,979
M16: Full Gas Central Heating System Inc Controls 0% 4% 1% 95% 100% 14,374
M22: Air Source Heat Pump 0% 3% 0% 97% 100% 10,886
M23: Ground Source Heat Pump 0% 3% 0% 97% 100% 10,800
M17: Full Oil/LPG Central Heating System Inc Controls 0% 2% 1% 97% 100% 8,273
M25: Programmer For Heating System 67% 2% 31% 1% 100% 6,201
M21: Full Elec Radiator System Inc Controls - Off Peak 0% 1% 0% 99% 100% 2,412
M37: Elec CPSU With Radiators And Controls On E18 Tariff 0% 0.5% 1% 99% 100% 1,941

5.5 The number of measures modelled by rurality, tenure and EPC banding is provided in Table A8.5 in Appendix 8.

5.6 Nine individual measures had a payback period of less than three years. These are shown in Figure 5.1.

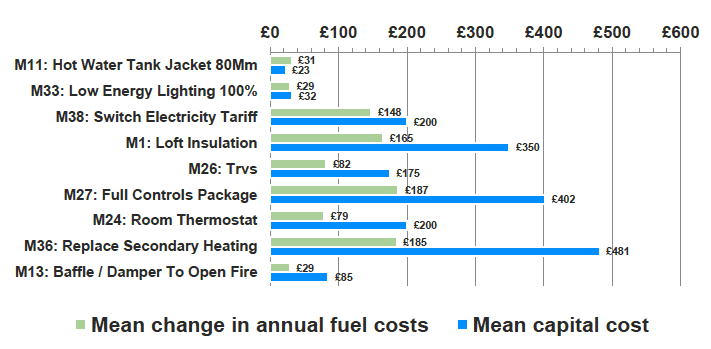

Figure 5.1: Mean capital cost and annual reduction in energy costs of the nine measures with a payback period less than three years.

Figure 5.1

5.7 In terms of their impact on SAP scores and their potential scope among the target stock (Table A8.6):

  • Adding a hot water tank jacket of 80mm increased the SAP score on average by 1.2 points and was modelled in 216,082 dwellings (54%).
  • Low energy lighting increased the SAP score on average by 1.0 point and was modelled in 356,043 dwellings (89%).
  • Switching electricity tariff raised the SAP score by 5.6 points on average and was modelled in 38,714 (10%) dwellings.
  • Loft insulation, including top-up insulation increased the SAP score by 5.3 points on average and was modelled in 300,669 dwellings (75%).
  • TRVs increased the SAP rating by 2.4 points on average and were modelled in 57,100 dwellings (14%).
  • Full Control Package increased the SAP score by 4.1 points on average and was modelled in 15,705 dwellings (4%).
  • Room thermostats increased the SAP score by 2.4 points on average and were modelled in 147,386 dwellings (37%).
  • Replacing the secondary heating increased the SAP score by 5.2 points on average was modelled in 96,558 dwellings (24%).
  • Adding a baffle/damper to an open fire increased the SAP score by 0.9 points on average and was modelled in 181,708 dwellings (45%).

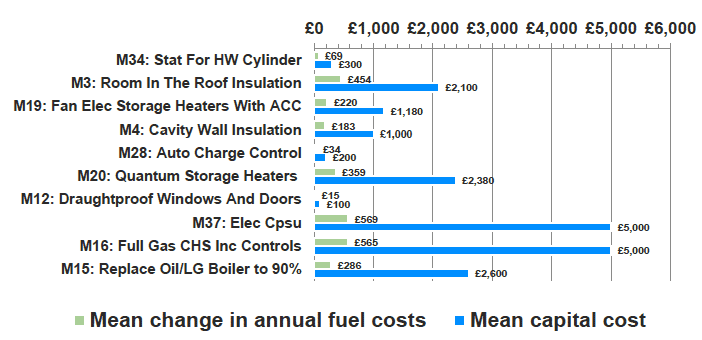

Figure 5.2: Mean capital cost and annual reduction in energy costs of the ten improvement measures with an average payback period of between three and ten years.

Figure 5.2: Mean capital cost and annual reduction in energy costs of the ten improvement measures with an average payback period of between three and ten years.

5.8 Ten individual measures had a payback period of between three and ten years (shown in Figure 5.2).

  • Adding a cylinder stat for hot water cylinder increased the SAP score on average by 2.1 points and was modelled in 57,247 dwellings (14%) and
  • Room in the roof insulation increased the SAP score on average by 13.0 points and was modelled in 118,072 dwellings (29%).
  • Fan electric storage heaters with auto charge control increased the SAP score on average by 8.3 points and was modelled in 115,201 dwellings (29%).
  • Cavity Wall Insulation increased the SAP score on average by 6.6 points and was modelled in 182,296 dwellings (46%).
  • Auto charge control increased the SAP score on average by 1.2 points and was modelled in 29,631 dwellings (7%).
  • Adding Quantum storage heaters increased the SAP score on average by 14.0 points and was modelled in 119,434 dwellings (30%).
  • Draught proofing windows and doors increased the SAP score on average by 0.5 points and was modelled in 316,074 dwellings (79%).
  • Adding an electric Combined Primary Storage Unit (CPSU) system with radiators and controls on E18 tariff increased the SAP score on average by 17.0 points and was but modelled in 1,941 dwellings (< 0.5%).
  • Adding full gas central heating system including controls increased the SAP score on average by 26.2 points and was modelled in 14,374 dwellings (4%).
  • Replacing an Oil/LG boiler with one that was 90% efficient increased the SAP score on average by 7.4 points and was modelled in 71,515 dwellings (18%).

5.9 The remaining 19 measures all had a payback period of more than ten years. Summary information on all 38 individual measures, including the average payback period, mean change in SAP, annual fuel costs, CO2e, Primary Energy, Delivered Energy[58] , and average capital costs are shown in Table A8.6 in Appendix 8.

Measures included in different scenarios

5.10 Table 5.2 shows the measures included in the improvement packages for each of the Scenarios. The most common measures included were loft insulation (including top-up loft insulation), room thermostats, low energy lighting, hot water tank jackets and cavity wall insulation. For Scenario 1, the most common measures were:

  • Adding loft insulation (62% of target stock: 18,375 dwellings)
  • Hot Water tank jacket (16% of target stock: 4,651 dwellings)
  • Room thermostats (15% of target stock: 4,457 dwellings)
  • Fan electric storage heaters with auto-charge control (10% of target stock: 2,878 dwellings)
  • Replacing secondary heating system (9% of target stock: 2,537 dwellings).

5.11 For Scenario 2, the most common measures were:

  • Adding loft insulation (44% of target stock: 74,369 dwellings)
  • Low energy lighting (15% of target stock: 25,496 dwellings)
  • Cavity wall insulation (14% of target stock: 24,611 dwellings)
  • Hot Water tank jacket (13% of target stock: 21,783 dwellings)
  • Replacing secondary heating system (13%: 21,700 dwellings).

5.12 For Scenario 3, the most common measures were:

  • Adding loft insulation (39% of target stock: 157,256 dwellings)
  • Low energy lighting (34% of target stock: 135,662 dwellings)
  • Cavity wall insulation (26% of target stock: 103,250 dwellings)
  • Hot Water tank jacket (22% of target stock: 88,179 dwellings)
  • Floor insulation (22% of target stock: 87,806 dwellings)
  • Replacing secondary heating system (18% of target stock: 70,274 dwellings)
  • Room thermostats (15% of target stock: 58,363).

5.13 For Scenario 4, the most common measures were:

  • Adding loft insulation (33% of target stock: 133,380 dwellings)
  • Low energy lighting (25% of target stock: 101,310 dwellings)
  • Hot Water tank jacket (16% of target stock: 62,406 dwellings)
  • Cavity wall insulation (16% of target stock: 63,849 dwellings)
  • Room thermostats (10% of target stock: 41,752 dwellings)
  • Replacing secondary heating system (10% of target stock: 38,212 dwellings).

Table 5.2: Individual measures included in packages (counts and %age of dwellings where measure included. Improvements that were not recommended in any dwelling in any scenario are not shown).

  Scenario 1 -
Reach Band F
Scenario 2 -
Reach Band E
Scenario 3 -
Reach Band D
Scenario 4 -
One band up
%age Total %age Total %age Total %age Total
Base (Total dwellings improved)   29,676   170,708   400,548   400,548
M1: Loft Insulation, inc’ top up 62% 18,375 44% 74,369 39% 157,256 33% 133,380
M2: Flat Roof Insulation 0% 0 1% 1,579 2% 7,359 1% 4,057
M3: Room In The Roof Insulation 0% 0 10% 16,815 18% 71,075 5% 18,722
M4: Cavity Wall Insulation 9% 2,649 14% 24,611 26% 103,250 16% 63,849
M5: Solid Wall Insulation 0% 0 1% 1,181 7% 29,561 1% 3,538
M6: Floor Insulation 5% 1,632 5% 9,262 22% 87,806 9% 34,983
M7: Double Glazing To 1.8 0% 0 0% 0 1% 2,701 0% 0
M8: Secondary Glazing To 2.4 0% 0 0% 438 2% 6,504 1% 2,248
M10: Insulated External Doors 0% 0 1% 1,604 3% 11,196 2% 6,515
M11: HW Tank Jacket 80Mm 16% 4,651 13% 21,783 22% 88,179 16% 62,406
M12: Draught proof windows & doors 0% 0 4% 7,492 5% 20,275 3% 13,619
M13: Baffle/Damper To Open Fire 0% 0 3% 5,412 6% 22,214 5% 19,169
M14: Replace Gas Boiler With Condensing Boiler 88% 0% 0 3% 4,519 6% 25,928 3% 12,650
M15: Replace Oil/LPG Boiler to 90% 3% 1,002 6% 10,046 7% 28,566 2% 9,730
M16: Full Gas CH Sys Inc Controls 0% 0 0% 0 0% 1,704 0% 0
M17: Full Oil/LPG CH Sys Inc Controls 0% 76 1% 1,802 1% 5,312 0% 779
M18: Full Biomass CH Inc Controls 0% 0 0% 41 0% 41 0% 0
M19: Fan Elec Storage Heaters With Auto Charge Control 10% 2,878 10% 16,541 5% 19,211 4% 15,342
M20: Quantum Storage Heaters 0% 0 4% 7,680 10% 39,291 3% 13,684
M24: Room Thermostat 15% 4,457 8% 12,998 15% 58,363 10% 41,752
M26: TRVs 4% 1,124 2% 2,980 6% 24,864 5% 18,371
M27: Full Controls Package 0% 0 2% 3,526 1% 4,817 1% 2,994
M28: Auto Charge Control 0% 0 1% 2,024 1% 4,939 2% 6,447
M29: Solar Thermal 4m2 0% 0 0% 0 1% 3,345 0% 0
M31: 2m Wind Turbine on roof 0% 0 0% 0 0% 1,287 0% 1,287
M33: Low Energy Lighting 100% 3% 949 15% 25,496 34% 135,662 25% 101,310
M34: Cylinder Stat For HW Cylinder 2% 708 2% 2,791 4% 17,288 3% 10,051
M36: Replace Secondary Heating system 9% 2,537 13% 21,700 18% 70,274 10% 38,212
M38: Switch Electricity Tariff 2% 611 2% 2,878 3% 13,399 4% 16,038

5.14 There were some differences by rurality, particularly in relation to Scenario 3. This primarily reflects differences in the characteristics of the stock in rural areas, and in particular, the average unimproved position (discussed further below) and the main heating system.

5.15 A higher proportion of dwellings in rural areas than in urban areas have the following measures included in Scenario 3: room in the roof insulation. (28% compared to 10%), floor insulation (40% compared to 9%), and the replacement Oil/LPG Boilers to one with 90% efficiency (16% compared to 1%). (See Table A8.9 in Appendix 8). In contrast, dwellings in urban areas are more likely those in rural areas to have low energy lighting (36% compared to 30%) in Scenario 3.

5.16 In comparison, there was very little difference in the measures included in the packages by tenure. (See Table A8.7)

The four different policy scenarios

5.17 Table 5.3 summarises the key information for the different policy scenarios.

Table 5.3: Summary of key indicators for the different policy scenarios

  Scenario 1 Scenario 2 Scenario 3 Scenario 4
All dwellings to Band F All dwellings to Band E All dwellings to Band D ALL EFG to improve one band
Number of dwellings improved 29,676 170,708 400,548 400,548
Mean SAP score pre improvement 12.3 28.5 39.4 39.4
Mean SAP score increase 13.7 13.4 16.4 9.4
Mean EI score pre improvements 24.1 24.6 32.4 32.4
Mean EI score increase 7.6 7.6 11.9 6.9
Mean capital cost of improvements £627 £1,232 £2,672 £969
Overall capital cost of improvements £18.6 m £210.2 m £1070.2 m £388.1 m

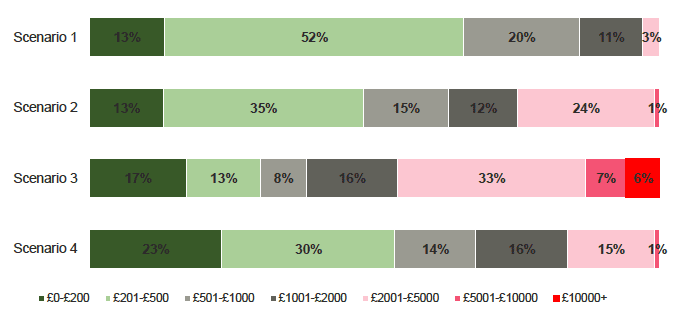

Banded capital cost: %age (n)
£0-£200
13%
(3,936)
13% (21,341) 17%
(68,078)
23% (93,335)
Banded capital cost: %age (n)
£201-£500
52%
(15,396)
35%
(59,970)
13%
(52,689)
30%
(121,333)
Banded capital cost: %age (n)
£501-£1,000
20%
(6,000)
15%
(25,102)
8%
(30,187)
14%
(57,087)
Banded capital cost: %age (n)
£1,001-£2,000
11%
(3,266)
12%
(20,517)
16%
(62,725)
16%
(66,046)
Banded capital cost: %age (n)
£2,001-£5,000
3%
(1,002)
24%
(41,145)
33%
(133,000)
15%
(58,174)
Banded capital cost: %age (n)
£5,001-£10,000
0%
(76)
1%
(2,160)
7%
(29,113)
1%
(4,553)
Banded capital cost: %age (n)
>£10,000
0%
(0)
0%
(473)
6%
(24,756)
0%(0)
Mean fuel cost pre improvement (£ per annum) £2,464 £2,062 £1,642 £1,642
Mean reduction in fuel costs (£ per annum) £542 £463 £483 £279
Overall fuel cost pre improvement (per annum) £73.1 m £352.0 m £657.8 m £657.8 m
Overall reduction in fuel costs (per annum) £16.1 m £79.0 m £193.0 m £111.6 m
Mean CO2e consumed pre improve’ (kg per annum) 11,197 11,604 9,319 9,319
Mean reduction in CO2e consumed (kg per annum) annum) 2,113 2,119 kg 2,617 kg 1,515 kg
Overall CO2e consumed pre improvement (thou tons) 332k tons 1,981k tons 3,733k tons 3,733k tons
Overall reduction in CO2e (thousand tons per annum) 62.7k tons m 361.7k tons 1,046k tons 605.8k tons
Mean Primary Energy consumed pre (kWh pa) 55,695 56,117 46,734 46,734
Mean reduction in PE (kWh per annum) 10,313 9,894 12,583 7,424
Overall PE consumed before package (kWh pa) 1,653 m 9,580 m 18,719 m 18,719 m
Overall reduction in PE (kWH pa) 306 m 1,689 m 5,030 m 2,968 m
Mean Delivered Energy consumed pre (kWH pa) pm) 36,447 37,532 31,104 31,104
Mean reduction in DE (kWh per annum) 6,885 7,460 8,927 5,114
Overall DE consumed before package (kWH pa) 1,082 m 6,407 m 12,459 m 12,459 m
Overall reduction in DE (kWh pa) 204 m 1,273 m 3,569 m 2,044 m
Median payback period 1.1 2.3 3.8 2.5
Mean payback period 1.2 2.7 5.5 3.5
Mean capital cost per SAP point increase £46 £92 £163 £103

5.18 By definition, Scenario 1 (improving all dwellings to reach EPC band F) and Scenario 2 (all dwellings to reach EPC band E) would involve upgrading fewer dwellings than Scenarios 3 and 4 (all dwellings to reach D and all target dwellings to move up one banding).

  • 29,676 dwellings would be improved by Scenario 1
  • 170,708 dwelling would be improved by Scenario 2
  • 400,548 dwellings would be improved by Scenarios 3 and 4.

5.19 While 42% of the overall REEPS target stock is in rural areas, the proportion varies by EPC band (Figure 5.3). This has an impact on the urban/rural split covered by the different scenarios. The majority of dwellings affected by Scenarios 1 and 2 would be in rural areas (67% and 59% respectively). In comparison, 42% of dwellings affected by Scenarios 3 and 4 would be in rural areas.

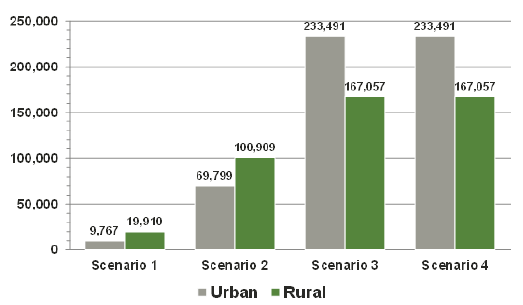

Figure 5.3: Number of dwellings affected by each scenario by urban/rural split

Figure 5.3: Number of dwellings affected by each scenario by urban/rural split

5.20 With regard to tenure, while 19% of the REEPS target stock is privately rented, a higher proportion of dwellings in the two lowest EPC bands, G & F, are privately rented. This affects the tenure split of stock targeted by the different scenarios (Figure 5.4). While 19% of the dwellings affected by Scenarios 3 and 4 are privately rented, 25% of those affected by Scenario 2 and 40% of those affected by Scenario 1 are privately rented.

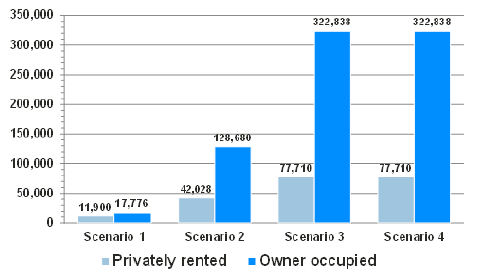

Figure 5.4: Number of dwellings affected by each scenario by tenure

Figure 5.4: Number of dwellings affected by each scenario by tenure

5.21 However, the turnover rate in the private rented sector is considerably higher than in the owner occupied sector[59]. For example, the turnover rate within 5 years among the REEPS target stock is 71% in the private rented sector, compared to 16% for owner occupied dwellings.

5.22 This has a large impact on the tenure make-up of dwellings affected by REEPS for all scenarios as illustrated in Figures 5.5, 5.6 and 5.7[60]. This is important as the implementation of regulations is likely to be closely linked to re-letting rental properties and sale of owner occupied dwellings.

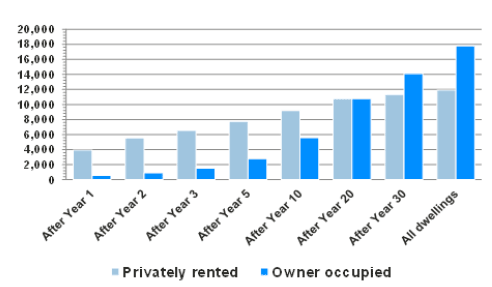

Figure 5.5: Progress towards Scenario 1 based on estimated turnover rates by tenure.

Figure 5.5: Progress towards Scenario 1 based on estimated turnover rates by tenure.

5.23 The private rented sector will make up the vast majority of dwellings affected in the first few years of REEPS, for all scenarios. After three years, private rented dwellings would account for:

  • 81% of the 8,104 dwellings affected by Scenario 1
  • 67% of the 34,353 dwellings affected by Scenario 2
  • 62% of the 75,908 dwellings affected by Scenarios 3 & 4.

5.24 It would be a considerable length of time before the number of dwellings in the owner occupied sector would match those affected in the private rented sector: around 20 years for Scenario 1; between 5 and 10 years for Scenario 2; and around 5 years for Scenarios 3 and 4.

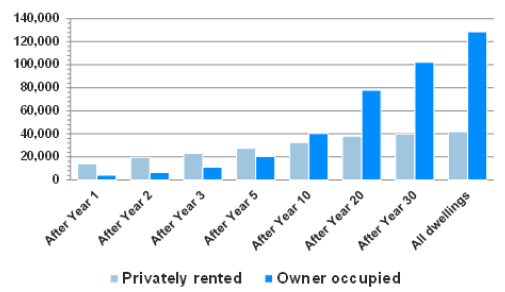

Figure 5.6: Progress towards Scenario 2 based on estimated turnover rates by tenure.

Figure 5.6: Progress towards Scenario 2 based on estimated turnover rates by tenure.

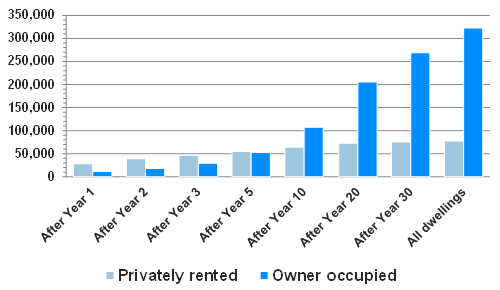

Figure 5.7: Progress towards Scenarios 3 and 4 based on estimated turnover rates by tenure.

Figure 5.7: Progress towards Scenarios 3 and 4 based on estimated turnover rates by tenure.

Capital costs

5.25 The number of dwellings to be improved and the average capital cost of the improvements per dwelling drive the overall capital cost of each scenario.

  • • Scenario 1 would require £18.6 million
  • • Scenario 2 would require £210.2 million
  • • Scenario 3 would require £1,070 million
  • • Scenario 4 would require £388.1 million (Table 5.3).

5.26 The average capital cost of improvements reflects both how much each dwelling needs to be improved and the base position of the dwelling. Obviously, improvements that make a large increase in energy efficiency are, on average, more expensive than those that make a small increase.

5.27 The average cost of improving a dwelling in EPC band G up one band (to F) would be £627 (Table 5.4). In comparison, to reach band E from band G would on average cost £2,863 and £8,430 to reach band D.

5.28 Moreover, more efficient dwellings are more expensive to improve. The average cost of improving a dwelling in EPC band G by one band is £627. For dwellings in EPC band F, the corresponding figure is £888, while for those in EPC band E, the average cost of improving a dwelling by one band increases to £1,062.

Table 5.4: Average capital cost per dwelling by base position

  EPC banding before improvements
G F E All target dwellings
Scenario 1 - To F £627     £627
Scenario 2 - To E £2,863 £888   £1,232
Scenario 3 - To D £8,430 £4,083 £1,062 £2,672
Scenario 4 - 1 Up £627 £888 £1,062 £969

5.29 This is also reflected in the cost per SAP point increase (£46 per SAP point for dwellings moving from G to F, £88 for dwellings moving from F to E, and £126 for dwellings moving from E to D).

Figure 5.8: Banded capital costs to reach each scenario.

Figure 5.8: Banded capital costs to reach each scenario.

5.30 The average cost of investment for Scenario 1 would be £627 per dwelling:

  • 3,936 (13%) would need investment of up to £200 (Figure 5.8)
  • 15,396 (52%) would need investment of between £201 and £500
  • 9,266 (31%) would need investment between £500 and £2,000
  • 1,078 (3%) would need to invest more than £2,000

5.31 The average cost of investment for Scenario 2 would be £1,232 per dwelling

  • 21,341 (13%) would need investment of up to £200
  • 59,970 (35%) would need investment of between £201 and £500
  • 45,619 (27%) would need investment between £500 and £2,000
  • 43,778 (25%) would need to invest more than £2,000

5.32 The average cost of investment for Scenario 3 would be £2,672 per dwelling

  • 120,767 (30%) would need investment of up to £500
  • 92,912 (24%) would need investment of £500 to £2,000
  • 133,000 (33%) would need investment of £2,001 to £5,000
  • 53,869 (13%) would need investment of more than £5,000

5.33 The average cost of investment for Scenario 4 would be £969 per dwelling:

  • 92,335 (23%) would need investment of up to £200
  • 122,333 (30%) would need investment of between £201 and £500
  • 123,133 (30%) would need investment between £500 and £2,000
  • • 62,727 (16%) would need to invest more than £2,000

5.34 The average cost of improvements tends to be higher for dwellings in rural areas than dwellings in urban areas across all Scenarios. This difference is most marked for Scenario 3 (£4,092 compared to £1,656 - see Table A8.14 in Appendix 8). This is mainly because of the higher proportion of rural dwellings in EPC bands G and F. However, there is also a difference in the average capital costs of improvement for Scenario 4. The average cost is £1,166 for dwelling in rural areas, compared to £828 in urban areas. There is no clear difference in the average costs of improvements between Owner-Occupied stock and Private Rented Stock (Table A8.).

Impact of the different scenarios

5.35 Broadly, the overall impacts of the different scenarios follow a similar pattern to costs.

5.36 In terms of overall savings in relation to fuel costs, CO2e emissions and Primary and Delivered Energy consumption, Scenario 1 has the smallest impact and Scenario 3 has the largest impact due to the difference in terms of number of dwellings improved and scale of the improvements required. Generally, however, the more efficient a dwelling is pre-improvement, the smaller the impact of measures will be. This means that the average impact on each dwelling tends to be largest where the base position of the stock is the lowest.

Impact on fuel costs

5.37 The overall impact with regard to annual fuel cost savings of the different scenarios would be:

  • Scenario 1 would give an annual fuel cost savings of £16.1million (a 22% decrease among dwellings improved).
  • Scenario 2, £79.0 million (a 22% decrease)
  • Scenario 3, £193.0 million (a 29% decrease)
  • Scenario 4, £111.6 million (a 17% decrease)

5.38 The average impact per dwelling differs by the scale of the improvement required and the base position of the dwelling. (Table 5.5)

Table 5.5: Average annual fuel cost saving per dwelling and percentage decrease in fuel cost by base position

  EPC banding before improvements
G F E All GFE
Scenario 1 - To F £542
(22%)
    £542
(22%)
Scenario 2 - To E £1,053
(43%)
£338
(17%)
  £463
(22%)
Scenario 3 - To D £1,398
(57%)
£735
(37%)
£209
(16%)
£483
(29%)
Scenario 4 - 1 Up £542
(22%)
£338 (17%) £209 (16%) £279
(17%)

5.39 The greater the scale of the improvements made, the greater the impact. Improving dwellings in EPC band G by one band (to F) would give an average annual fuel cost saving per dwelling of £542 (22% reduction) per annum compared to £1,053 (43% reduction) for improving this stock two bands to reach band E and £1,398 (57% reduction) for improving these dwellings three bands to reach band D.

5.40 Generally, however, the more efficient a dwelling is pre-improvement, the smaller the impact of improvements. The average annual fuel saving for improving a dwelling in EPC band G by one band is £542 (22% reduction). For dwellings in EPC band F, the corresponding figure is £338 (17% reduction), while for those in EPC band E, the saving decreases to £209 (16% reduction).

5.41 There are no clear differences in annual fuel cost savings by rurality. Within Scenario 1, dwellings in rural areas would save £525 per annum compared with £578 for dwellings in urban dwellings. (See Table A8.14). For Scenario 3, there is a considerable difference in the average fuel cost saving (£644 in rural areas, compared to £367 in urban areas). Note, however, that this is primarily due to a higher proportion of dwellings in rural areas than in urban areas being in bands G and F. For Scenario 4, the average annual fuel cost saving for rural dwellings is £326 compared to £246 in urban areas.

5.42 For the least efficient dwellings, the capital cost of improvements is lowest, and the financial gains are highest. It follows that the payback period is the shortest for these dwellings (Table 5.6). Scenario 1 has a mean payback period of 1.2 years, compared with 2.7 for Scenario 2, 5.5 for Scenario 3, and 3.5 year for Scenario 4.

Table 5.6: Mean payback period (years) by base position

  EPC banding before improvements
G F E All target dwellings
Scenario 1 - To F 1.2     1.2
Scenario 2 - To E 2.7 2.6   2.7
Scenario 3 - To D 6.0 5.6 5.1 5.5
Scenario 4 - 1 Up 1.2 2.6 5.1 3.5

5.43 With regard to CO2e savings, when all properties are improved:

  • Scenario 1 would give an annual saving of 63 thousand tons per annum
  • Scenario 2 would give an annual saving of 362 thousand tons per annum
  • Scenario 3 would give an annual saving of 1.046 million tons per annum
  • Scenario 4 would give an annual saving of 606 thousand tons per annum.

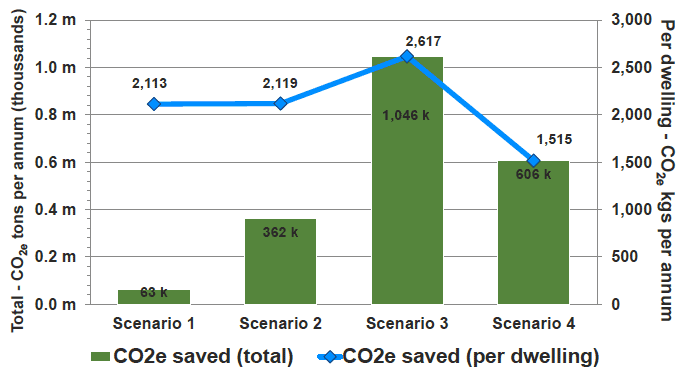

Figure 5.9: Total CO2e saved (million tons per annum) and average per dwelling (kgs per annum) by scenario.

Figure 5.9: Total CO2e saved (million tons per annum) and average per dwelling (kgs per annum) by scenario.

5.44 The average impact per dwelling again differs by the scale of the improvement required and the base position of the dwelling. (Table 5.7)

Table 5.7: Average annual CO2e savings (kgs) per dwelling and percentage decrease in CO2e by base position

  EPC banding before improvements
G F E All target dwellings
Scenario 1 - To F 2,113
(19%)
    2,113
(19%)
Scenario 2 - To E 3,317
(30%)
1,867
(16%)
  2,119
(18%)
Scenario 3 - To D 5,036
(45%)
4,374
(37%)
1,222
(16%)
2,617
(28%)
Scenario 4 - 1 Up 2,113 (19%) 1,867
(16%)
1,222
(16%)
1,515
(16%)

5.45 In general, the larger the scale of the improvement made, the greater the impact on CO2e. However, unlike fuel cost savings, there is no clear relationship between the level of efficiency prior to improvement and impact on CO2e savings. Within Scenario 4, properties moving from G to F would see a 19% reduction in CO2e, properties moving from F to E a 16% reduction, and properties moving from E to D properties a 16% reduction.

5.46 Across all four scenarios, on average, dwellings in rural areas would see a greater reduction in CO2e than dwellings in urban areas[61] (Table A8.14).

Impact on primary and delivered energy

5.47 Figure 5.10 shows the overall reduction in delivered and primary energy that would result from the four scenarios:

  • Scenario 1 would lead to an annual saving of 204m kWh per annum for delivered energy and 306m kWh per annum for primary energy
  • Scenario 2 would lead to an annual saving of 1,273m kWh per annum for delivered energy and 1,695m kWh per annum for primary energy
  • Scenario 3 would lead to an annual saving of 3,569m kWh per annum for delivered energy and 5,030m kWh per annum for primary energy
  • Scenario 4 would lead to an annual saving of 2,044m kWh per annum for delivered energy and 2,968m kWh per annum for primary energy

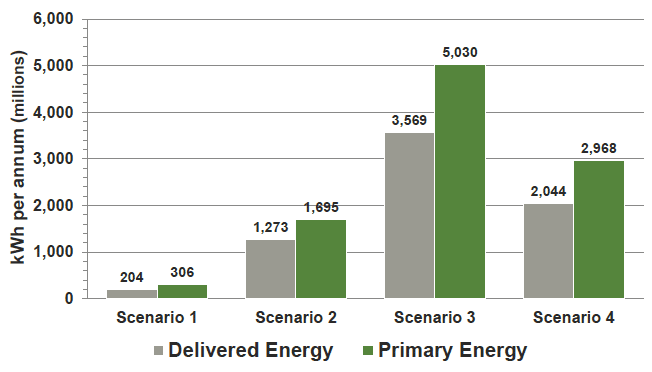

Figure 5.10: Delivered and Primary Energy savings (kWh per annum) for capital costs to reach each scenario.

Figure 5.10: Delivered and Primary Energy savings for capital costs to reach each scenario

5.48 As with energy costs, the larger the scale of improvement made, the greater the impact. Improving dwellings in EPC band G by one band to F would give an average reduction in primary energy of 10,313 kWh per annum (19% reduction) compared to 14,956 kWh per annum (27% reduction) for improving this stock two bands to reach band E and 25,267 kWh per annum (45% reduction) for a three band improvement to D.

5.49 Moving a dwelling one band up has a larger impact on the least efficient dwellings. The average reduction in primary energy annual fuel saving for improving a dwelling from G to F is 10,313 kWh per annum (19% reduction). The corresponding figure for F to E improvements is 8,829 (16% reduction), and 6,184 (16% reduction) for E to D improvements.

Table 5.8: Average reduction in primary energy (kWh per annum) per dwelling and percentage decrease by base position

  EPC banding before improvements
G F E All target dwellings
Scenario 1 - To F 10,313
(19%)
    10,313
(19%)
Scenario 2 - To E 14,956
(27%)
8,829
(16%)
  9,894
(18%)
Scenario 3 - To D 25,267
(45%)
20,305
(36%)
6,184
(16%)
12,583
(27%)
Scenario 4 - 1 Up 10,313
(19%)
8,829
(16%)
6,184
(16%)
7,424
(16%)

5.50 The pattern in delivered energy is similar.

Effect of "in-use"factors[62]

5.51 In-use factors are designed primarily to account for differences in performance of retrofit energy efficiency improvements in-situ compared to laboratory testing. These differences can arise due to:

  • imperfect installation
  • obstructions to insulating parts of walls, e.g. due to garages or conservatories
  • natural variations in the thermal performance of structural and fabric elements that cannot be fully determined by the assessment, e.g. the U-values of un-insulated walls.

5.52 The in-use factor is not intended to account for occupants changing their behaviour, for example, comfort taking to achieve a warmer home[63].

5.53 One of the key requirements of the energy efficiency modelling conducted by this research project was to ensure results were consistent with those generated by Energy Performance Certificates (EPCs). As the underlying SAP and RdSAP software does not have the facility to incorporate in-use factors, these have not been included in the main research findings reported in this Chapter, nor have they been included in the detailed archetype modelling examples published with this report.

5.54 However, it is important that the impact of in-use factors is considered, especially in estimating the impact on CO2e reductions, generated by installing improvement measures. In-use factors will also affect estimates of energy use and running costs. These will be fully accounted for in the Business and Regulatory Impact Assessment (BRIA) produced by the Scottish Government.

5.55 In order to provide an indication of the effect of in-use factors, the following section illustrates the impacts on headline CO2e consumption and fuel cost results, for two of the policy scenarios.

5.56 In-use factors applied are provided by the Department for Energy and Climate Change (DECC)[64]. These factors are applied in assessments of eligibility for the Green Deal and for calculating the consequences of improvements funded under ECO. These have been interpreted for application to the measures included in this report as shown in Table 5.9, in descending order of impact.

Table 5.9: DECC In-use factors as applied to individual modelled measures - in descending order

Code Improvement Measure In-Use Factor
M24 room thermostat 0.5
M25 programmer for heating system 0.5
M26 TRVs 0.5
M27 full controls package (r/stat, programmer and TRVs) 0.5
M28 Auto charge control 0.5
M1 loft insulation 0.35
M4 cavity wall insulation 0.35
M3 room in the roof insulation 0.25
M5 solid wall insulation 0.25
M14 replace gas boiler with condensing boiler 88% 0.25
M15 replace oil boiler with condensing boiler 90% 0.25
M16 full gas central heating system inc controls 0.25
M17 full oil central heating system inc controls 0.25
M18 full biomass central heating system inc controls 0.25
M22 air source heat pump 0.25
M35 Air to Air heat pump 0.25
M36 replace secondary heating with one more efficient 0.25
M37 electric CPSU with radiators and controls on E18 tariff 0.25
M2 flat roof insulation 0.15
M6 floor insulation 0.15
M7 double glazing to 1.8 0.15
M8 secondary glazing to 2.4 0.15
M9 triple glazing to 1.4 0.15
M10 insulated external doors 0.15
M11 hot water tank jacket 80mm 0.15
M12 draughtproof windows and doors 0.15
M13 baffle / damper to open fire 0.15
M19 fan electric storage heaters with auto charge control 0.1
M20 quantum storage heaters 0.1
M21 full electric radiator system inc controls - off peak tariff 0.1
M23 ground source heat pump 0.1
M34 Cylinder stat for hot water cylinder 0.1
M29 Solar thermal 4m2 0
M30 PV 2kWp 0
M31 2m diameter wind turbine on roof 0
M32 5m wind turbine on stand-alone mast 0
M33 low energy lighting 100% 0
M38 switch to E24 tariff 0

5.57 The in-use factors in Table 5.9 range from 0 to 0.5, which corresponds to the benefits of these improvement measures being reduced by between 0% and 50%, when compared to results generated by EPC reports.

5.58 The impact of applying in-use factors to headline results on CO2 consumption and fuel costs for policy scenarios 2 and 3 is illustrated in Table 5.10.

5.59 The impact of in-use factors on CO2 consumption is a 28% reduction on headline results for both Scenarios 2 and 3. This reduces overall CO2 savings by 103k tons under Scenario 2 to 259k tons and by 289k tons under Scenario 3 to 757k tons.

5.60 The impact of in-use factors on fuel costs is a 26% reduction on headline results for both Scenarios 2 and 3. This reduces overall fuel costs savings by £20m under Scenario 2 to £59m and by £50m under Scenario 3 to £143m.

Table 5.10: DECC In-use factors as applied to headline results on CO2 consumption and fuel costs for Policy Scenarios 2 and 3.

  Scenario 2 Scenario 3
All dwellings to reach Band E All dwellings to reach Band D
Number of dwellings improved 170,708 400,548
Mean CO2 consumed pre improvement (kg per annum) 11,604 kg 9,319 kg
  Reduction 2,119 kg 2,617 kg
  Reduction after In-Use-Factors 1,517 kg 1,894 kg
  difference 602 kg 723 kg
  % difference -28% -28%

Overall CO2 consumed pre improvement (k tons per annum) 1,981 k tons 3,733 k tons
  Reduction 362 k tons 1,046 k tons
  Reduction after In-Use-Factors 259 k tons 757 k tons
  difference 103 k tons 289 k tons
  % difference -28% -28%
Mean fuel cost pre improvement (£) £2,062 £1,642
  Reduction £463 £483
  Reduction after In-Use-Factors £344 £359
  difference £119 £124
  % difference -26% -26%
Overall fuel cost pre improvement (£m)   £352 m £658 m
  Reduction £79 m £193 m
  Reduction after In-Use-Factors £59 m £143 m
  difference £20 m £50 m
  % difference -26% -26%

Contact

Email: Silvia Palombi
