Publication - Advice and guidance

Building standards technical handbook 2019: non-domestic

Published
17 September 2019
Part of
Building, planning and design
ISBN
978-1-78544-329-9

The building standards technical handbooks provide guidance on achieving the standards set in the Building (Scotland) Regulations 2004. This handbook applies to a building warrant submitted on or after 1 October 2019 and to building work which does not require a warrant commenced from that date.

This document is part of a collection

View supporting documents Supporting documents

Annex 7.A Example options of measures for the control of solar gain

Solar shading should be designed to reduce summer time overheating and allow passive solar gain during winter months. Effective solar shading design should not reduce natural lighting within a room to the extent that artificial lighting is required.  External shading devices are the most effective as they deflect solar radiation before it enters the building.

Horizontal devices on south facades provide the most effective shading without compromising natural daylight, however this type of measure is not suitable for east and west facades as the angle of the sun is too low. Vertical fins and adjustable devices such as sliding and rotating shutters are best suited to east and west facades. For optimum indoor thermal comfort designers should consider combining effective solar shading with night time cooling through the use of inward opening hopper windows or vents.

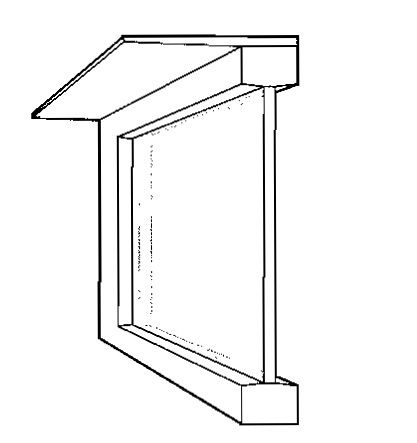

Figure 7.1.  Horizontal overhangs

Horizontal overhangs

Horizontal overhang or window reveals are best suited for south facing openings, the total shading depth should be around 50% of the window height and extend no greater than 1500mm for optimum effectiveness.  Measures can provide up to 75% solar gain reduction.

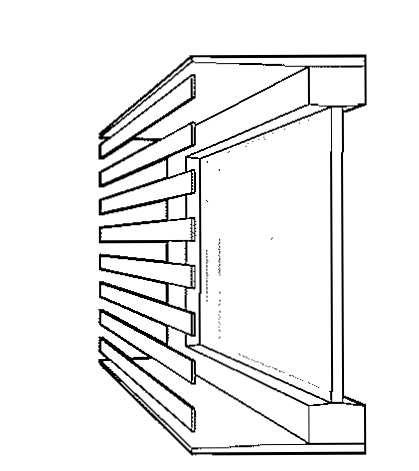

Figure 7.2. Horizontal louvres

Horizontal louvres

Horizontal louvres and shutters (sliding or rotating) combined with a horizontal overhang can be used on south facades. Measures can provide up to 90-95% solar gain reduction.

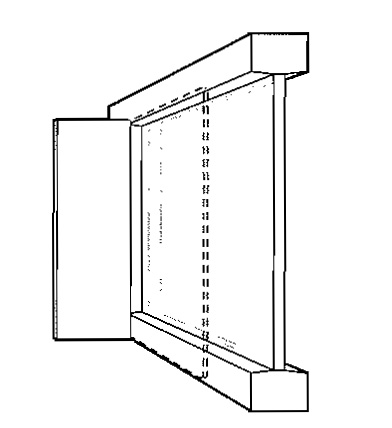

Figure 7.3. Shutters

Shutters

Shutters (sliding or rotating) can be used on south, east and west facing facades. Lockable shutters allow secure night time cooling and inward opening windows.

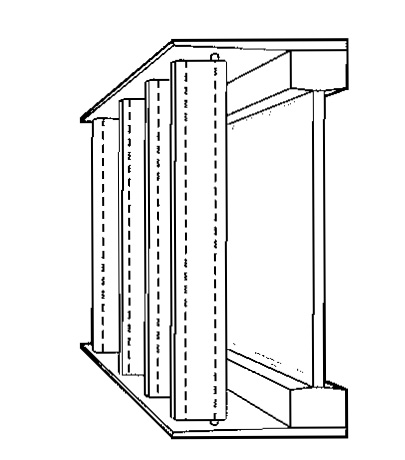

Figure 7.4. Vertical fins

Vertical fins

Vertical fins (adjustable or fixed) combine with a horizontal overhang  are best suited for east and west facades. Measures can provide up to 85-90% solar gain reduction.

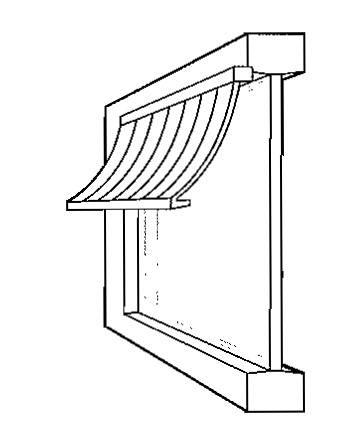

Figure 7.5. Awnings

Awnings

Awnings or  roller shades can be used on south, east and west facades. Measures can provide up to 60-75% solar gain reduction.

External shading devices should be considered in the first instance. However where external shading devices cannot form part of the external fabric for reasons such as a planning restrictions, internal shading devices such as curtains and blinds can be used. These measures are generally not as effective as external shading devices as they absorb part of the solar radiation within the room or space.
